onsemi FSL116HR
- Part No.:
- FSL116HR
- Manufacturer:
- onsemi
- Category:
- AC DC Converters, Offline Switches
- Package:
- 8-DIP (0.300", 7.62mm)
- Description:
- IC OFFLINE SWITCH FLYBACK 8DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
FSL116HR - onsemi Integrated Power Switch for AC/DC Converters
The FSL116HR is a high-performance AC/DC controller with an integrated power switch from onsemi. It features a 650V integrated power switch and is designed for efficient, low-power conversion in applications such as power adapters and auxiliary power supplies.
Product Overview
The FSL116HR provides a robust solution for offline power supplies, featuring a 100kHz frequency operation and adjustable current limit functionality. It is engineered to minimize external component count while maximizing power density and reliability in small-form-factor designs.
About onsemi
onsemi is a leading supplier of semiconductor-based solutions, offering an extensive portfolio of intelligent sensing and power management technologies designed to drive energy efficiency in industrial and consumer electronics.
Key Advantages
High voltage capability for robust AC/DC conversion.
Provides design flexibility for various power loads.
Stable operation for predictable system noise performance.
Simplifies PCB design and reduces overall system cost.
Package & Mechanical Details
Standardized package for reliable through-hole or surface-mount assembly.
- Package: PDIP-8 / PDIP-8 GW
- Operating Temp: Industrial grade

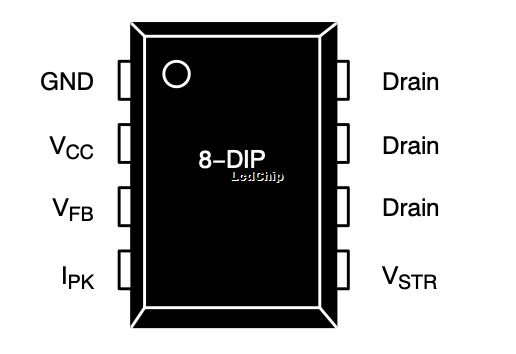

Pin Functions & Terminal Map
The device includes dedicated pins for drain, VCC, feedback, and current sensing to ensure streamlined power management.
Technical Specifications
| Part Number | FSL116HR |
|---|---|
| Manufacturer | onsemi |
| Integrated Switch | 650V |
Equivalent & Replacement Guide
For replacement or design alternatives, consider the following:
- FSL136HR: A functional equivalent in the same product family, often evaluated for power scaling.
Typical Applications
Power Adapters
Auxiliary Power Supplies
Quality & Authenticity
Industrial grade quality, supported through authorized onsemi distribution networks.
Frequently Asked Questions
What is the switching frequency?
The device operates at a fixed 100kHz.Does it have adjustable current limiting?
Yes, it supports adjustable current limit for system protection.Disclaimer
Technical details provided are for reference. Consult the official onsemi datasheet for design-in validation.
FSL116HR Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Series:
- FPS™
- Package/Case:
- 8-DIP (0.300", 7.62mm)
- Packaging:
- Tube
- Product Status:
- Active
- Output Isolation:
- Isolated
- Internal Switch(s):
- Yes
- Voltage - Breakdown:
- 650V
- Topology:
- Flyback
- Voltage - Start Up:
- 12 V
- Voltage - Supply (Vcc/Vdd):
- 8V ~ 26V
- Duty Cycle:
- 77%
- Frequency - Switching:
- 100kHz
- Power (Watts):
- 16 W
- Fault Protection:
- Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
- Control Features:
- -
- Operating Temperature:
- -40°C ~ 105°C (TA)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 8-DIP
- Mounting Type:
- Through Hole
- Include Parts
