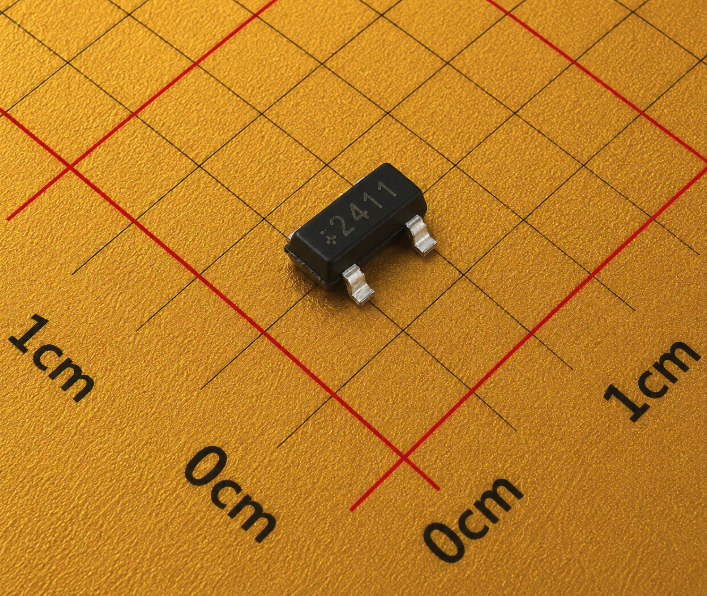

Analog Devices Inc./Maxim Integrated DS2411R+T&R
- Part No.:
- DS2411R+T&R
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Specialized ICs
- Package:
- TO-236-3, SC-59, SOT-23-3
- Description:
- IC SILICON SERIAL NUMBER SOT23-3
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
DS2411R+T&R - Analog Devices Silicon Serial Number with Chip ID
The DS2411R+T&R is a Silicon Serial Number device from Analog Devices, featuring a unique, factory-lasered 64-bit registration number. Designed to serve as an electronic identifier, it utilizes the robust 1-Wire® interface. Housed in a small SOT-23 package, it is perfect for electronic tagging, equipment serialization, and asset management in industrial and consumer electronics.
Product Overview
The DS2411 incorporates a unique 64-bit ROM, providing an immutable "silicon signature" for any device it is attached to. Because it only requires a single data line and ground to communicate, integration into space-constrained systems is seamless and cost-effective.
About Analog Devices
Analog Devices, Inc. (ADI) is a world leader in high-performance analog technology, renowned for their expertise in 1-Wire® communication protocols and reliable industrial-grade identification solutions.
Key Advantages
Factory-lasered, guaranteed unique identifier.
Single-contact 1-Wire® communication.
Operates on power from the 1-Wire bus.
Standard small surface-mount footprint.
Package & Mechanical Details
Compact SOT-23 package designed for automated SMT assembly.
- Industrial Temp: -40°C to +85°C
- RoHS: Compliant
Pin Functions & Terminal Map
Utilizes the standard 1-Wire protocol for identification; requires minimal external components for integration.
Technical Specifications
| Part Number | DS2411R+T&R |
|---|---|
| Manufacturer | Analog Devices |
| Function | Silicon Serial Number (ROM) |
Equivalent & Replacement Guide
Direct replacement consideration:
- DS2411R+: Non-tape-and-reel version of the same unique ID device.
Typical Applications
Electronic Asset Tagging
Equipment Serialization
Quality & Authenticity
Industrial grade quality standards, sourced via authorized Analog Devices distribution channels.
Frequently Asked Questions
Is the serial number programmable?
No, it is factory-lasered for guaranteed global uniqueness.Does it require external power?
No, it is parasitically powered from the 1-Wire interface.Disclaimer
Technical details are for reference only. Consult official Analog Devices documentation for design-in qualification.
DS2411R+T&R Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Series:
- -
- Package/Case:
- TO-236-3, SC-59, SOT-23-3
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- Silicon Serial Number
- Applications:
- PCB, Network Node, Equipment Identification/Registration
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOT-23-3
- Grade:
- -
- Qualification:
- -
