Analog Devices Inc. AD390TD/883B
- Part No.:
- AD390TD/883B
- Manufacturer:
- Analog Devices Inc.
- Category:
- Digital to Analog Converters (DAC)
- Package:
- 28-CDIP (0.600", 15.24mm)
- Description:
- IC DAC 12BIT QUAD 28CDIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details

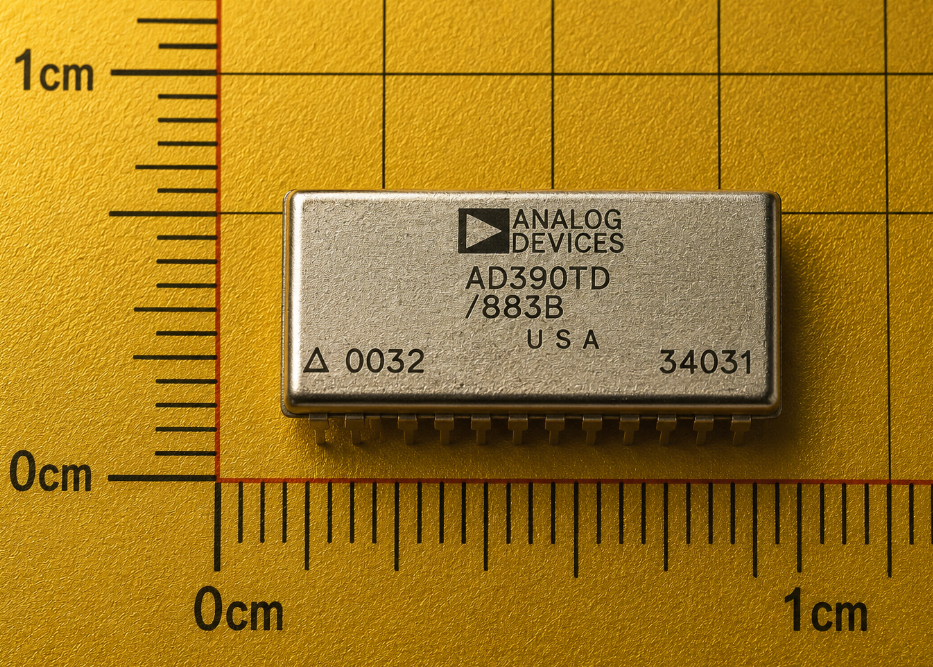

AD390TD/883B - ADI High-Precision Quad 12-Bit CMOS DAC (MIL-STD-883 Compliant)
The AD390TD/883B is a monolithic, high-performance Quad 12-bit Digital-to-Analog Converter (DAC) manufactured by Analog Devices. Fully qualified to MIL-STD-883B standards, it provides four independent, high-speed DACs in a single 28-pin ceramic package. With its microprocessor-compatible interface and exceptional accuracy over the full military temperature range, it is an essential component for aerospace, defense, and high-precision instrumentation.
Mission Critical: Engineered for extreme environments, the "TD" grade ensures consistent 12-bit monotonicity and precision from -55°C to +125°C.
Overview & Architectural Excellence
The AD390TD/883B is designed for applications where PCB real estate is at a premium and system reliability cannot be compromised. By integrating four 12-bit DACs, double-buffered data latches, and a control logic stage into a 28-pin Side-Brazed Ceramic DIP, it drastically reduces the component count and complexity of multi-channel analog output systems.
This device features a sophisticated Microprocessor-Compatible Interface, allowing it to be easily interfaced with 8-bit or 16-bit bus systems. The DACs are laser-trimmed at the wafer level to ensure tight linearity specifications and minimal gain drift, making it ideal for high-resolution control systems and automated test equipment (ATE).
About Analog Devices (ADI)
Analog Devices, Inc. (ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs).
ADI's products play a fundamental role in converting, conditioning, and processing real-world phenomena such as light, sound, temperature, motion, and pressure into electrical signals. For decades, ADI has been the gold standard for high-reliability components used in space, defense, and healthcare industries.
Key Advantages
Significant space savings on high-density military-grade PCBs compared to using discrete DACs.
Guaranteed performance from -55°C to +125°C with 12-bit accuracy maintained throughout.
Integrated CMOS technology ensures high performance with minimal thermal dissipation.
Allows simultaneous updating of all four DAC outputs to eliminate time-skew in multi-channel systems.
Package & Mechanical Details

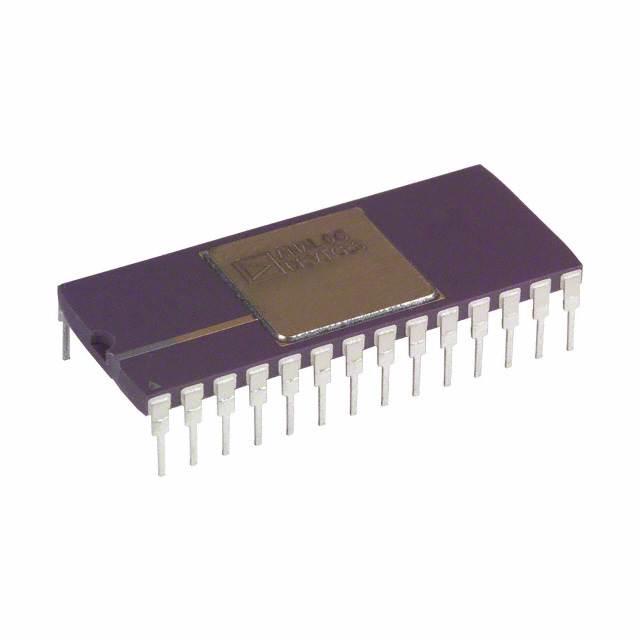

The AD390TD/883B is housed in a high-reliability 28-Pin Ceramic Side-Brazed DIP (DH-28). This hermetic package is designed to withstand extreme thermal cycling and mechanical vibration.
- Package Material: Alumina Ceramic with Hermetic Seal.
- Lead Finish: Gold or Solder dipped (per MIL-Spec).
- Mounting Type: Through-hole or Socket.
- Reliability: Tested for salt spray, moisture, and fine-leak detection.
Pin Functions & Terminal Map
The AD390 terminal layout supports an 8-bit or 12-bit data bus through its control logic pins.
Technical Specifications
| Part Number | AD390TD/883B |
|---|---|
| Manufacturer | Analog Devices (ADI) |
| Resolution | 12-Bit |
| Number of DACs | 4 (Quad) |
| Settling Time | 8 μs (Maximum) |
| Operating Temp Range | -55°C to +125°C |
| Supply Voltage | ±15V (Typical) |
| Package | 28-Pin Ceramic DIP |
Equivalent & Replacement Guide
Direct replacements for the AD390TD/883B must meet MIL-STD-883B standards to ensure system certification.
- AD390SD/883B: A similar version with slightly different performance characteristics (verify settling time and drift).
- AD390JD/KD: Commercial/Industrial grade versions (Note: Not suitable for military environments due to lack of 883B screening).
- 5962-885620x: The SMD (Standard Microcircuit Drawing) equivalent number often used in defense procurement.
Typical Application Fields
Avionics & Flight Control
Multi-channel control surface actuation and cockpit display instrumentation.
Military ATE
Automated test equipment for simulating analog sensor data in field diagnostic gear.
Radar & Sonar
Precision beam-forming and signal conditioning in mobile defense radar units.
Quality & Authenticity
- MIL-STD-883B Screened: 100% burn-in and electrical testing per military requirements.
- Hermeticity: Verified through fine and gross leak testing for long-term storage and operation.
- Anti-Counterfeit: Sourced via authorized ADI channels with full traceability and documentation.
Frequently Asked Questions
What is the main benefit of the 883B qualification?
Is the AD390TD compatible with 8-bit processors?
Disclaimer
AD390TD/883B Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Package/Case:
- 28-CDIP (0.600", 15.24mm)
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Number of Bits:
- 12
- Number of D/A Converters:
- 4
- Settling Time:
- 8µs
- Output Type:
- Voltage - Buffered
- Differential Output:
- No
- Data Interface:
- Parallel
- Reference Type:
- External, Internal
- Voltage - Supply, Analog:
- ±13.5V ~ 16.5V
- Voltage - Supply, Digital:
- -
- INL/DNL (LSB):
- ±0.125, ±0.25
- Architecture:
- -
- Operating Temperature:
- -55°C ~ 125°C
- Supplier Device Package:
- 28-CDIP
- Mounting Type:
- Through Hole
- Grade:
- -
- Qualification:
- -
