Aker Technology Corp C16-96.000-8-1520-X2-R

Name: C16-96.000-8-1520-X2-R
Brand: Aker Technology Corp
SKU: C16-96.000-8-1520-X2-R
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: C16-96.000-8-1520-X2-R

Manufacturer:: Aker Technology Corp

Category:: Crystals

Package:: 4-SMD, No Lead

Datasheet:: C16-96.000-8-1520-X2-R.pdf

Description:: CRYSTAL 96MHZ 8PF SMD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

C16-96.000-8-1520-X2-R Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Aker Technology Corp

Series:: -

Package/Case:: 4-SMD, No Lead

Packaging:: Cut Tape (CT)

Product Status:: Active

Type:: MHz Crystal

Frequency:: 96 MHz

Frequency Stability:: ±15ppm

Frequency Tolerance:: ±20ppm

Load Capacitance:: 8pF

ESR (Equivalent Series Resistance):: -

Operating Mode:: Fundamental

Operating Temperature:: -40°C ~ 105°C

Ratings:: -

Mounting Type:: Surface Mount

Supplier Device Package:: -

Size / Dimension:: 0.063" L x 0.047" W (1.60mm x 1.20mm)

Height - Seated (Max):: 0.016" (0.40mm)

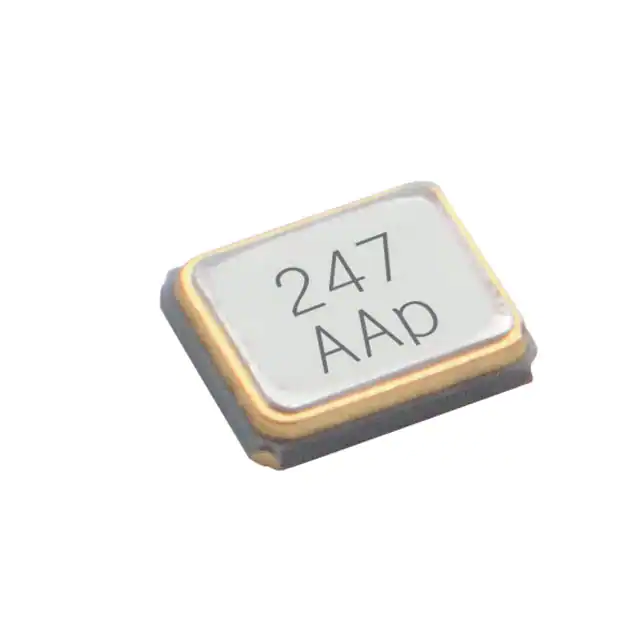

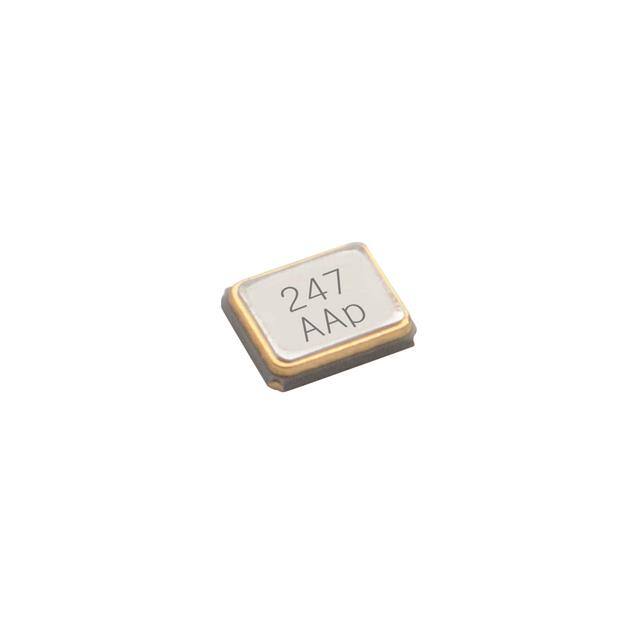

Part Number	C16-32.000-8-1515-X-R	C16-26.000-8-1520-R	C16-32.000-8-3030-X-R	C16-96.000-8-1520-X2-R	C16-40.000-8-1020-A-X-R
Manufacturer	Aker Technology Corp	Aker Technology Corp	Aker Technology Corp	Aker Technology Corp	Aker Technology Corp
Series	C16	C16	C16	-	C16 Auto
Package/Case	4-SMD, No Lead	4-SMD, No Lead	4-SMD, No Lead	4-SMD, No Lead	4-SMD, No Lead
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Cut Tape (CT)	Cut Tape (CT)
Product Status	Active	Active	Active	Active	Active
Type	MHz Crystal	MHz Crystal	MHz Crystal	MHz Crystal	MHz Crystal
Frequency	32 MHz	26 MHz	32 MHz	96 MHz	40 MHz
Frequency Stability	±15ppm	±20ppm	±30ppm	±15ppm	±20ppm
Frequency Tolerance	±15ppm	±15ppm	±30ppm	±20ppm	±10ppm
Load Capacitance	8pF	8pF	8pF	8pF	8pF
ESR (Equivalent Series Resistance)	100 Ohms	120 Ohms	100 Ohms	-	60 Ohms
Operating Mode	Fundamental	Fundamental	Fundamental	Fundamental	Fundamental
Operating Temperature	-40°C ~ 85°C	-20°C ~ 70°C	-40°C ~ 85°C	-40°C ~ 105°C	-40°C ~ 85°C
Ratings	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Supplier Device Package	-	-	-	-	-
Size / Dimension	0.063" L x 0.047" W (1.60mm x 1.20mm)	0.063" L x 0.047" W (1.60mm x 1.20mm)	0.063" L x 0.047" W (1.60mm x 1.20mm)	0.063" L x 0.047" W (1.60mm x 1.20mm)	0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)
