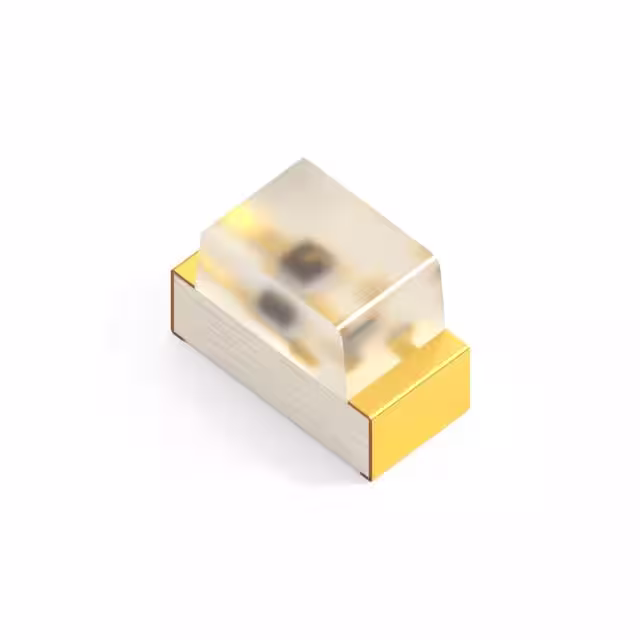

SunLED XZTNI53W-8
- Part No.:
- XZTNI53W-8
- Manufacturer:
- SunLED
- Category:
- LED Emitters - Infrared, UV, Visible
- Package:
- 0603 (1608 Metric)
- Datasheet:
-
XZTNI53W-8.pdf
- Description:
- EMITTER IR 940NM 50MA SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
XZTNI53W-8 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- SunLED
- Series:
- PX Series
- Package/Case:
- 0603 (1608 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Infrared (IR)
- Current - DC Forward (If) (Max):
- 50mA
- Radiant Intensity (Ie) Min @ If:
- 1.2mW/sr @ 20mA
- Wavelength:
- 940nm
- Voltage - Forward (Vf) (Typ):
- 1.2V
- Viewing Angle:
- 60°
- Orientation:
- Top View
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
| Image |  |
 |
 |
| Part Number | XZTNI53W-8 | XZTNI53W-1 | XZTNI53W |
| Manufacturer | SunLED | SunLED | SunLED |
| Series | PX Series | PX Series | - |
| Package/Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 50mA | 50mA | 50mA |
| Radiant Intensity (Ie) Min @ If | 1.2mW/sr @ 20mA | 0.8mW/sr @ 20mA | 0.8mW/sr @ 20mA |
| Wavelength | 940nm | 940nm | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.2V | 1.2V | 1.2V |
| Viewing Angle | 60° | 150° | 120° |
| Orientation | Top View | Top View | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
