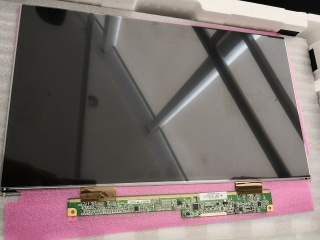

BOE MV185WHB-N20
- Part No.:
- MV185WHB-N20
- Manufacturer:
- BOE
- Category:
- TFT CELL Shipment Type
- Package:
- Description:
- BOE 18.5" IPS CELL FOB 1366×768 LVDS 75Hz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
MV185WHB-N20 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 18.5"
- TNVAIPS:
- HADS
- Resolution:
- 1366×768
- Viewing Area:
- 409.8×230.4
- Outline Size:
- 422.2(H)×244.1(V) ×1.32(D) mm
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 0 cd/m²
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 14 (Typ.)(G to G)
- Best View on:
- Symmetry
- Work Mode:
- HADS, Normally Black, Transmissive
- Glass Thickness:
- 0.50+0.50 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth)
- Transmissivity:
- 6.0% (Typ.)(with Polarizer)
- Color Depth:
- 16.7M 72% NTSC
- Backlight:
- No B/L
- Mass:
- 327g (Typ.)
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz
- Driver IC list:
- COF Built-in 2 source chips
- Signal Type:
- LVDS (1 ch, 8-bit) , 30 pins Connector
| Image |  |
 |

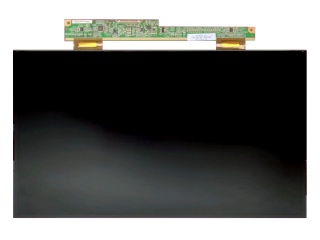

| Part Number | MV185WHB-N20 | MV185WHB-N10 |
| Manufacturer | BOE | BOE |
| Panel Size | 18.5" | 18.5" |
| TNVAIPS | HADS | HADS |
| Resolution | 1366×768 | 1366×768 |
| Viewing Area | 409.8×230.4 | 409.8×230.4 |
| Outline Size | 422.2(H)×244.1(V) ×1.32(D) mm | 422.2(W)×244.1(H)×1.32(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 0 cd/m² | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) |
| Response Time | 14 (Typ.)(G to G) | 14 (Typ.)(G to G) |
| Best View on | Symmetry | |
| Work Mode | HADS, Normally Black, Transmissive | HADS, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth) | 0.50+0.50 mm |
| Transmissivity | 6.0% (Typ.)(with Polarizer) | 5.1% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 72% NTSC | 16.7M 72% NTSC |
| Backlight | No B/L | No B/L |
| Mass | 327g (Typ.) | 296g (Typ.) |
| Touch Screen | Without | Without |
| Refresh Rate | 75Hz | 75Hz |
| Driver IC list | COF Built-in 2 source chips | COF Built-in 2 source chips |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector | LVDS (1 ch, 8-bit) 30 pins Connector |
