Everlight Electronics Co Ltd IR26-21C/L110/TR8
- Part No.:
- IR26-21C/L110/TR8
- Manufacturer:
- Everlight Electronics Co Ltd
- Category:
- LED Emitters - Infrared, UV, Visible
- Package:
- 1206 (3216 Metric)
- Datasheet:
-
IR26-21C/L110/TR8.pdf
- Description:
- EMITTER IR 940NM 65MA 1206
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
IR26-21C/L110/TR8 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Everlight Electronics Co Ltd
- Series:
- -
- Package/Case:
- 1206 (3216 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Infrared (IR)
- Current - DC Forward (If) (Max):
- 65mA
- Radiant Intensity (Ie) Min @ If:
- 1mW/sr @ 20mA
- Wavelength:
- 940nm
- Voltage - Forward (Vf) (Typ):
- 1.2V
- Viewing Angle:
- 20°
- Orientation:
- Top View
- Operating Temperature:
- -25°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount, Bottom Entry
| Image |  |
 |
 |
|
|

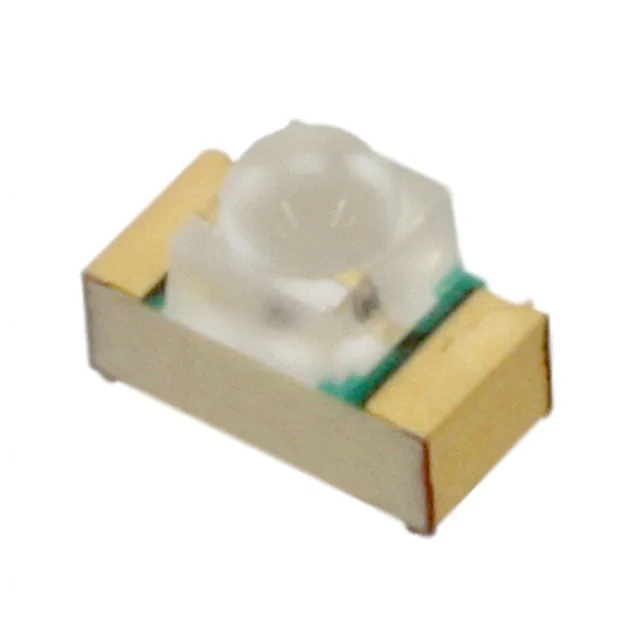

| Part Number | IR26-21C/L110/TR8 | IR26-51C/L110/TR8 | IR26-71C/L302/TR8 | IR26-51C/L510/TR8 | IR26-61C/L302/TR8 |
| Manufacturer | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd |
| Series | - | - | - | - | - |
| Package/Case | 1206 (3216 Metric) | 2-SMD, No Lead | 1210 (3225 Metric) | 2-SMD, No Lead | 2-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 65mA | 65mA | 65mA | 50mA | 65mA |
| Radiant Intensity (Ie) Min @ If | 1mW/sr @ 20mA | 1mW/sr @ 20mA | 2mW/sr @ 65mA | 9mW/sr @ 50mA | 4mW/sr @ 65mA |
| Wavelength | 940nm | 940nm | 940nm (920nm ~ 960nm) | 940nm | 940nm (920nm ~ 960nm) |
| Voltage - Forward (Vf) (Typ) | 1.2V | 1.2V | - | 1.3V | 1.25V, 1.4V |
| Viewing Angle | 20° | 20° | 45° | 20° | 20° |
| Orientation | Top View | Top View | Side View | Side View | Side View |
| Operating Temperature | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -40°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount, Bottom Entry | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
- Include Parts
- Popular Search
The following parts include "IR26-21C/L110/TR8" in Silicon Labs IR26-21C/L110/TR8.
- Part Number
- Manufacturer
- Package
- Description
- IR26-21C/L110/TR8 Everlight Electronics Co Ltd 1206 (3216 Metric) EMITTER IR 940NM 65MA 1206
- IR12-21C/TR8 Everlight Electronics Co Ltd 2-SMD, No Lead EMITTER IR 940NM 65MA SMD
- APA3010F3C-GX Kingbright 2-SMD, No Lead EMITTER IR 940NM 50MA SMD
- IR333-A Everlight Electronics Co Ltd Radial EMITTER IR 940NM 100MA RADIAL
- LTE-4208 Lite-On Inc. T 1 3/4 EMITTER IR 940NM 50MA T 1 3/4
- TSAL6200 Vishay Semiconductor Opto Division Radial, 5mm Dia (T 1 3/4) EMITTER IR 940NM 100MA RADIAL
- TSAL4400 Vishay Semiconductor Opto Division Radial, 3mm Dia (T-1) EMITTER IR 940NM 100MA RADIAL
- 15406085BA300 Würth Elektronik 0603 (1608 Metric) WL-SICW SMD INFRARED CHIPLED WAT
- AM2520F3C03-P22 Kingbright 2-SMD, Gull Wing 2.5X2.0MM INFRARED SMD LED
- VSLB3940 Vishay Semiconductor Opto Division Radial EMITTER IR 940NM 100MA RADIAL
