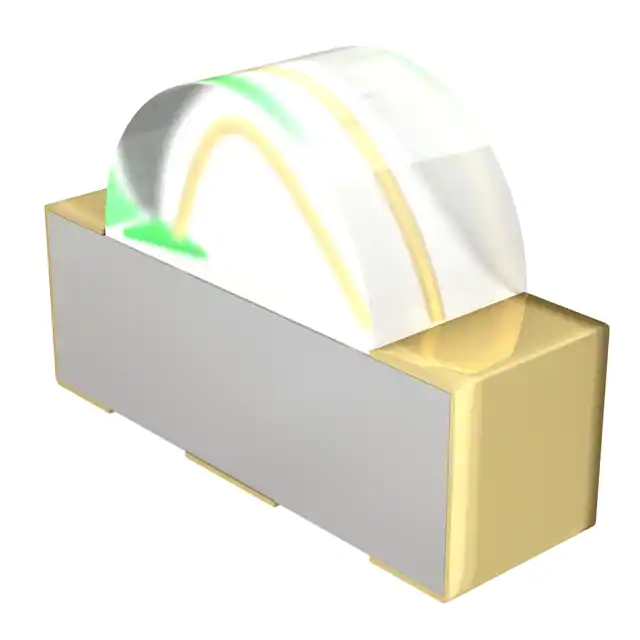

Everlight Electronics Co Ltd IR12-21C/TR8
- Part No.:
- IR12-21C/TR8
- Manufacturer:
- Everlight Electronics Co Ltd
- Category:
- LED Emitters - Infrared, UV, Visible
- Package:
- 2-SMD, No Lead
- Datasheet:
-
IR12-21C/TR8.pdf
- Description:
- EMITTER IR 940NM 65MA SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
IR12-21C/TR8 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Everlight Electronics Co Ltd
- Series:
- -
- Package/Case:
- 2-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Infrared (IR)
- Current - DC Forward (If) (Max):
- 65mA
- Radiant Intensity (Ie) Min @ If:
- 0.5mW/sr @ 20mA
- Wavelength:
- 940nm
- Voltage - Forward (Vf) (Typ):
- 1.2V
- Viewing Angle:
- 160°
- Orientation:
- Side View
- Operating Temperature:
- -25°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount, Right Angle
| Image |  |
 |
|
| Part Number | IR12-21C/TR8 | IR12-21C/TR8(NEO) | IR12-206C/L268/TR8 |
| Manufacturer | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd |
| Series | - | - | - |
| Package/Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 65mA | 65mA | 50mA |
| Radiant Intensity (Ie) Min @ If | 0.5mW/sr @ 20mA | 0.5mW/sr @ 65mA | 0.5mW/sr @ 50mA |
| Wavelength | 940nm | 940nm | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.2V | 1.2V | 1.2V, 1.3V, 1.4V |
| Viewing Angle | 160° | 150° | 120°, 160° |
| Orientation | Side View | Side View | Side View |
| Operating Temperature | -25°C ~ 85°C (TA) | -25°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount |
