XSSY Optoelectronics Co.,Ltd. XS-IR04A05-802
- Part No.:
- XS-IR04A05-802
- Manufacturer:
- XSSY Optoelectronics Co.,Ltd.
- Category:
- LED Emitters - Infrared, UV, Visible
- Package:
- 2-SMD, No Lead
- Datasheet:
-
XS-IR04A05-802.pdf
- Description:
- IR EMITTER 940NM 70MA 1208 SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
XS-IR04A05-802 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- XSSY Optoelectronics Co.,Ltd.
- Series:
- -
- Package/Case:
- 2-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Infrared (IR)
- Current - DC Forward (If) (Max):
- 70mA
- Radiant Intensity (Ie) Min @ If:
- 10mW/sr @ 20mA
- Wavelength:
- 940nm
- Voltage - Forward (Vf) (Typ):
- 1.3V ~ 1.5V
- Viewing Angle:
- 20°, 80°
- Orientation:
- Top View
- Operating Temperature:
- -30°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
| Image |  |
 |
 |
 |
 |

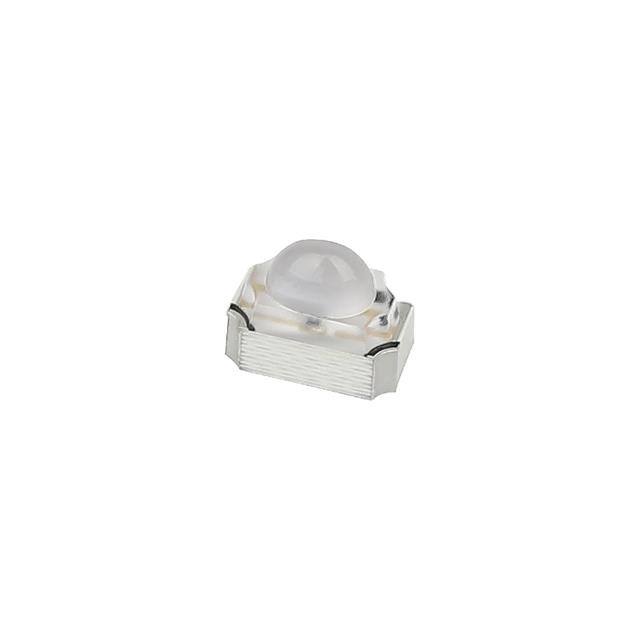

| Part Number | XS-IR04A03-702 | XS-IR02A03-600 | XS-IR04A05-802 | XS-IR04A03-700 | XS-PD04A26-806 |
| Manufacturer | XSSY Optoelectronics Co.,Ltd. | XSSY Optoelectronics Co.,Ltd. | XSSY Optoelectronics Co.,Ltd. | XSSY Optoelectronics Co.,Ltd. | XSSY Optoelectronics Co.,Ltd. |
| Series | - | - | - | - | - |
| Package/Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | - | 2-SMD, No Lead |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR) | ||
| Product Status | Active | Active | Active | Active | Active |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 30mA | 30mA | 70mA | 30mA | - |
| Radiant Intensity (Ie) Min @ If | 10mW/sr @ 20mA | 4mW/sr @ 20mA | 10mW/sr @ 20mA | 10mW/sr @ 5mA | - |
| Wavelength | 940nm | 940nm | 940nm | 940nm | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.3V ~ 1.5V | 1.3V ~ 1.5V | 1.3V ~ 1.5V | 1.3V | 1.5V (Max) |
| Viewing Angle | 35°, 65° | 35°, 65° | 20°, 80° | 20°, 70° | - |
| Orientation | Top View | Side View | Top View | Top View | Top View |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount |
- Include Parts
- Popular Search
The following parts include "XS-IR04A05-802" in Silicon Labs XS-IR04A05-802.
- Part Number
- Manufacturer
- Package
- Description
- IR26-21C/L110/TR8 Everlight Electronics Co Ltd 1206 (3216 Metric) EMITTER IR 940NM 65MA 1206
- IR12-21C/TR8 Everlight Electronics Co Ltd 2-SMD, No Lead EMITTER IR 940NM 65MA SMD
- APA3010F3C-GX Kingbright 2-SMD, No Lead EMITTER IR 940NM 50MA SMD
- IR333-A Everlight Electronics Co Ltd Radial EMITTER IR 940NM 100MA RADIAL
- LTE-4208 Lite-On Inc. T 1 3/4 EMITTER IR 940NM 50MA T 1 3/4
- TSAL6200 Vishay Semiconductor Opto Division Radial, 5mm Dia (T 1 3/4) EMITTER IR 940NM 100MA RADIAL
- TSAL4400 Vishay Semiconductor Opto Division Radial, 3mm Dia (T-1) EMITTER IR 940NM 100MA RADIAL
- 15406085BA300 Würth Elektronik 0603 (1608 Metric) WL-SICW SMD INFRARED CHIPLED WAT
- AM2520F3C03-P22 Kingbright 2-SMD, Gull Wing 2.5X2.0MM INFRARED SMD LED
- VSLB3940 Vishay Semiconductor Opto Division Radial EMITTER IR 940NM 100MA RADIAL
