TDK Corporation VST10/9EE-205S1C2
- Part No.:
- VST10/9EE-205S1C2
- Manufacturer:
- TDK Corporation
- Category:
- Current Sense Transformers
- Package:
- Datasheet:
-
VST10/9EE-205S1C2.pdf
- Description:
- CURRENT SENSE TRANSFORMERS, WOUN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
VST10/9EE-205S1C2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- VST
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Frequency Range:
- -
- Type:
- Invasive
- Current Rating (Amps):
- 20 A
- Inductance:
- 12.4 mH
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1:200
- Current Ratio:
- -
- DC Resistance (DCR):
- -
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.476" L x 0.425" W (12.10mm x 10.80mm)
- Height - Seated (Max):
- 0.394" (10.00mm)
- Termination Style:
- Gull Wing
| Image |  |
 |

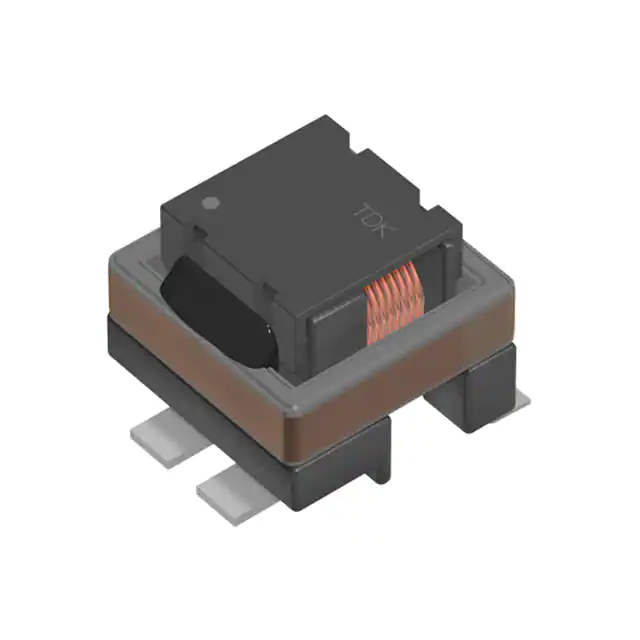

| Part Number | VST10/9EE-205S1C2 | VST10/9EE-200S1C2 |
| Manufacturer | TDK Corporation | TDK Corporation |
| Series | VST | VST |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Frequency Range | - | - |
| Type | Invasive | - |
| Current Rating (Amps) | 20 A | - |
| Inductance | 12.4 mH | - |
| ET (Volt-Time) | - | - |
| Turns Ratio - Primary:Secondary | 1:200 | 1:100 |
| Current Ratio | - | - |
| DC Resistance (DCR) | - | - |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Size / Dimension | 0.476" L x 0.425" W (12.10mm x 10.80mm) | 0.476" L x 0.425" W (12.10mm x 10.80mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Termination Style | Gull Wing | - |
