Talema Group LLC ASM-010
- Part No.:
- ASM-010
- Manufacturer:
- Talema Group LLC
- Category:
- Current Sense Transformers
- Package:
- Datasheet:
-
ASM-010.pdf
- Description:
- CURR SENSE XFMR 10A T/H
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ASM-010 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Talema Group LLC
- Series:
- ASM
- Packaging:
- Tray
- Product Status:
- Active
- Frequency Range:
- 50Hz ~ 60Hz
- Type:
- Non-Invasive (Solid Core)
- Current Rating (Amps):
- 10 A
- Inductance:
- -
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- -
- Current Ratio:
- -
- DC Resistance (DCR):
- -
- Ratings:
- -
- Mounting Type:
- Through Hole
- Size / Dimension:
- 0.677" L x 0.375" W (17.20mm x 9.53mm)
- Height - Seated (Max):
- 0.803" (20.40mm)
- Termination Style:
- PC Pin

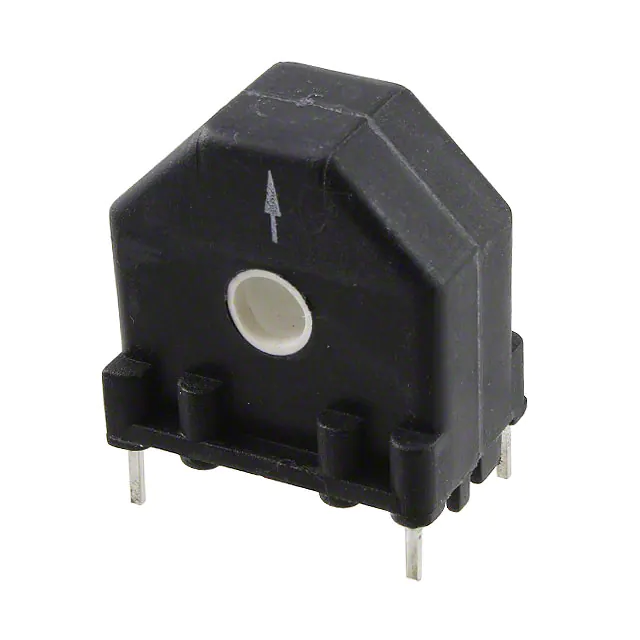

| Image |  |
 |
| Part Number | ASM-010 | ASM-020 |
| Manufacturer | Talema Group LLC | Talema Group LLC |
| Series | ASM | ASM |
| Packaging | Tray | Tray |
| Product Status | Active | Active |
| Frequency Range | 50Hz ~ 60Hz | 50/60Hz |
| Type | Non-Invasive (Solid Core) | Non-Invasive (Solid Core) |
| Current Rating (Amps) | 10 A | - |
| Inductance | - | - |
| ET (Volt-Time) | - | - |
| Turns Ratio - Primary:Secondary | - | - |
| Current Ratio | - | - |
| DC Resistance (DCR) | - | - |
| Ratings | - | - |
| Mounting Type | Through Hole | - |
| Size / Dimension | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.906" L x 0.610" W (23.00mm x 15.50mm) |
| Height - Seated (Max) | 0.803" (20.40mm) | 0.984" (25.00mm) |
| Termination Style | PC Pin | PC Pin |
