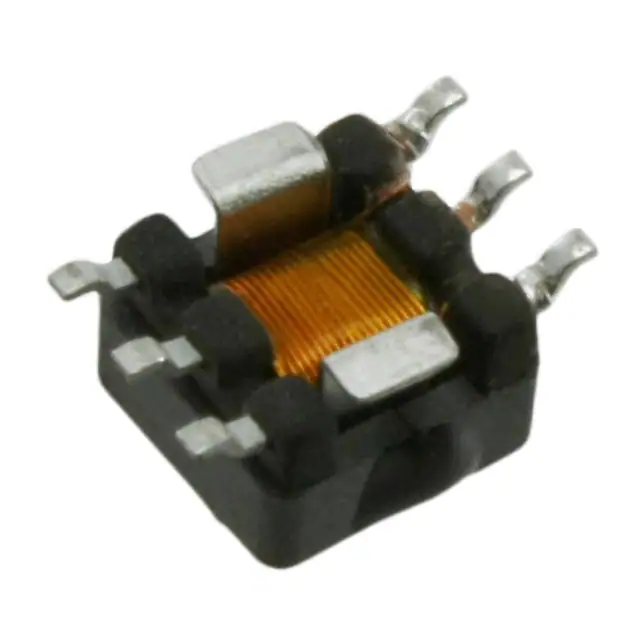

Pulse Electronics P8205NLT
- Part No.:
- P8205NLT
- Manufacturer:
- Pulse Electronics
- Category:
- Current Sense Transformers
- Package:
- Description:
- CURR SENSE XFMR 1:50 SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
P8205NLT Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pulse Electronics
- Series:
- P820X
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Frequency Range:
- 50kHz ~ 1MHz
- Type:
- Invasive
- Current Rating (Amps):
- -
- Inductance:
- 500 µH
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1:50
- Current Ratio:
- -
- DC Resistance (DCR):
- 6mOhm Primary, 1.5Ohm Secondary
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.284" L x 0.330" W (7.21mm x 8.38mm)
- Height - Seated (Max):
- 0.217" (5.50mm)
- Termination Style:
- Gull Wing
| Image |  |
| Part Number | P8205NLT |
| Manufacturer | Pulse Electronics |
| Series | P820X |
| Packaging | Tape & Reel (TR) |
| Product Status | Active |
| Frequency Range | 50kHz ~ 1MHz |
| Type | Invasive |
| Current Rating (Amps) | - |
| Inductance | 500 µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:50 |
| Current Ratio | - |
| DC Resistance (DCR) | 6mOhm Primary, 1.5Ohm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.284" L x 0.330" W (7.21mm x 8.38mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Termination Style | Gull Wing |
