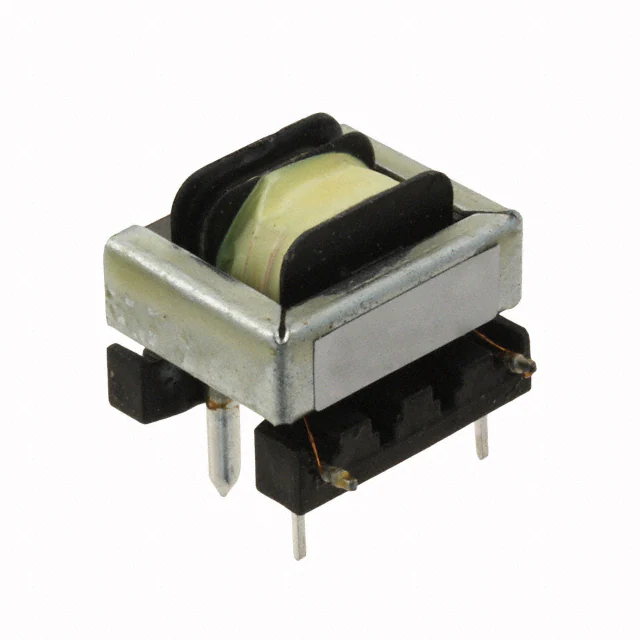

Triad Magnetics CSE187L
- Part No.:
- CSE187L
- Manufacturer:
- Triad Magnetics
- Category:
- Current Sense Transformers
- Package:
- Datasheet:
-
CSE187L.pdf
- Description:
- CURR SENSE XFMR 1:500 30A T/H
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CSE187L Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Triad Magnetics
- Series:
- CSE
- Packaging:
- Bulk
- Product Status:
- Active
- Frequency Range:
- 50Hz ~ 400Hz
- Type:
- Invasive
- Current Rating (Amps):
- 30 A
- Inductance:
- -
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1:500
- Current Ratio:
- -
- DC Resistance (DCR):
- 3mOhm Primary, 21Ohm Secondary
- Ratings:
- -
- Mounting Type:
- Through Hole
- Size / Dimension:
- 0.860" L x 0.720" W (21.84mm x 18.29mm)
- Height - Seated (Max):
- 0.710" (18.03mm)
- Termination Style:
- PC Pin
| Image |  |
 |
 |
 |

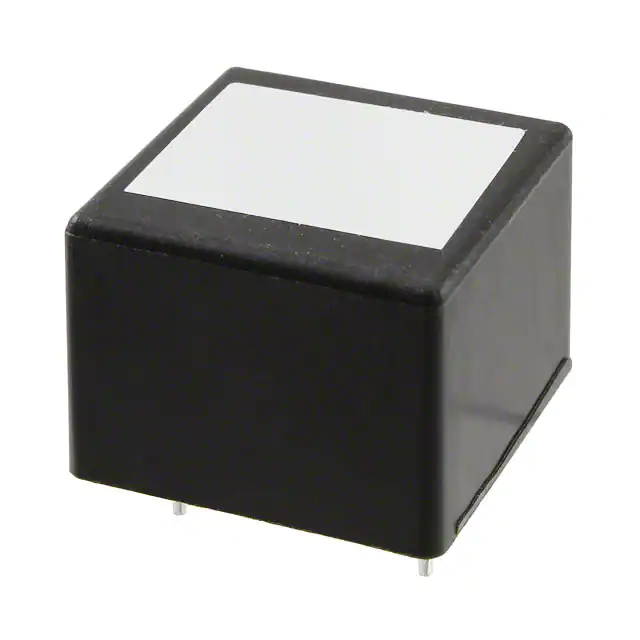

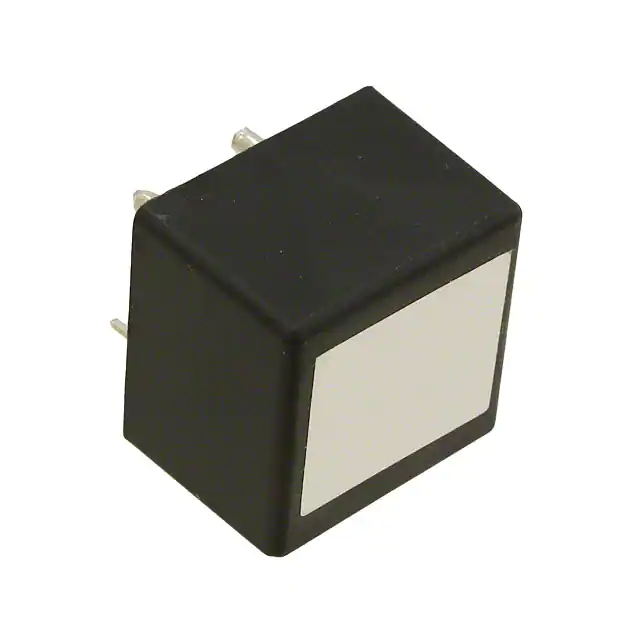

| Part Number | CSE187L | CSE187L-P | CSE187L-B | CSE187L-P-B |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Series | CSE | CSE | CSE187 | CSE |
| Packaging | Bulk | Bulk | - | Bulk |
| Product Status | Active | Active | Active | Active |
| Frequency Range | 50Hz ~ 400Hz | 50Hz ~ 400Hz | - | 50Hz ~ 400Hz |
| Type | Invasive | Invasive | - | Invasive |
| Current Rating (Amps) | 30 A | 30 A | - | 30 A |
| Inductance | - | - | - | - |
| ET (Volt-Time) | - | - | - | - |
| Turns Ratio - Primary:Secondary | 1:500 | 1:500 | 1:500 | 1:500 |
| Current Ratio | - | - | - | - |
| DC Resistance (DCR) | 3mOhm Primary, 21Ohm Secondary | 3mOhm Primary, 21Ohm Secondary | 250mOhm Max | 3mOhm Primary, 21Ohm Secondary |
| Ratings | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 0.860" L x 0.720" W (21.84mm x 18.29mm) | 0.875" L x 0.875" W (22.23mm x 22.23mm) | 0.875" L x 0.875" W (22.23mm x 22.23mm) | 0.875" L x 0.875" W (22.23mm x 22.23mm) |
| Height - Seated (Max) | 0.710" (18.03mm) | 0.720" (18.29mm) | 0.720" (18.29mm) | 0.720" (18.29mm) |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin |
- Include Parts
- Popular Search
The following parts include "CSE187L" in Silicon Labs CSE187L.
- Part Number
- Manufacturer
- Package
- Description
- 53100C Murata Power Solutions Inc. CURR SENSE XFMR 1:100 10A SMD
- B82801B0925A200 EPCOS - TDK Electronics CURR SENSE XFMR 1:200 20A SMD
- PA1005.100NLT Pulse Electronics CURR SENSE XFMR 1:100 20A SMD
- B82801B0205A100 EPCOS - TDK Electronics CURR SENSE XFMR 1:100 SMD
- ACST-261-1 Zettler Magnetics CURRENT SENSE TRANSFORMER
- ASM-010 Talema Group LLC CURR SENSE XFMR 10A T/H
- P8205NLT Pulse Electronics CURR SENSE XFMR 1:50 SMD
- CSE187L Triad Magnetics CURR SENSE XFMR 1:500 30A T/H
