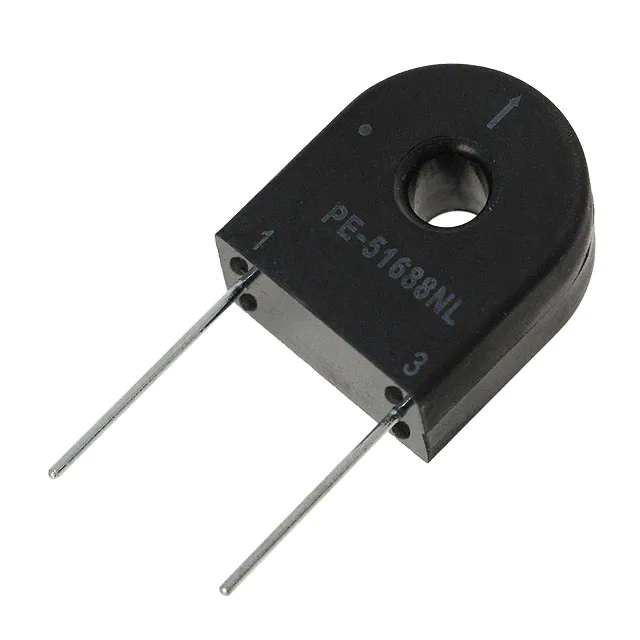

Pulse Electronics PE-51688NL
- Part No.:
- PE-51688NL
- Manufacturer:
- Pulse Electronics
- Category:
- Current Sense Transformers
- Package:
- Description:
- CURR SENSE XFMR 20A T/H
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PE-51688NL Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pulse Electronics
- Series:
- THT
- Packaging:
- Tray
- Product Status:
- Active
- Frequency Range:
- 20kHz ~ 200kHz
- Type:
- Invasive
- Current Rating (Amps):
- 20 A
- Inductance:
- 80 mH
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- -
- Current Ratio:
- 200:1
- DC Resistance (DCR):
- 200Ohm Primary, 4.5Ohm Secondary
- Ratings:
- -
- Mounting Type:
- Through Hole
- Size / Dimension:
- 0.670" L x 0.390" W (17.01mm x 9.90mm)
- Height - Seated (Max):
- 0.800" (20.32mm)
- Termination Style:
- PC Pin
| Image |  |
 |
 |
 |
|

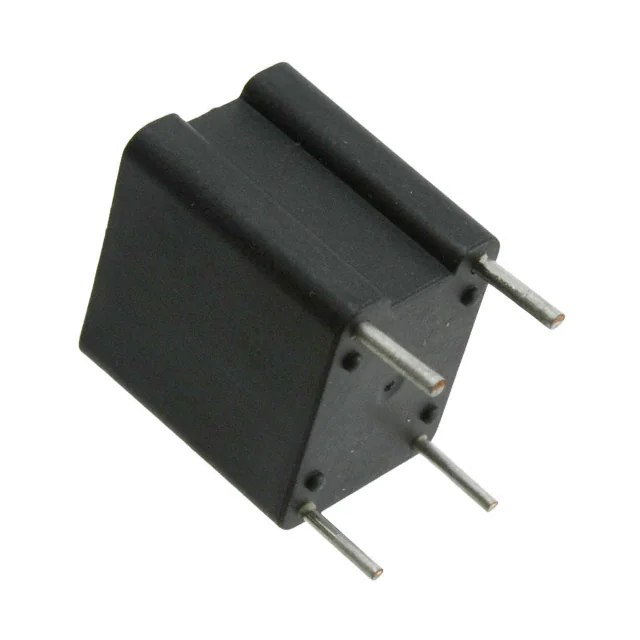

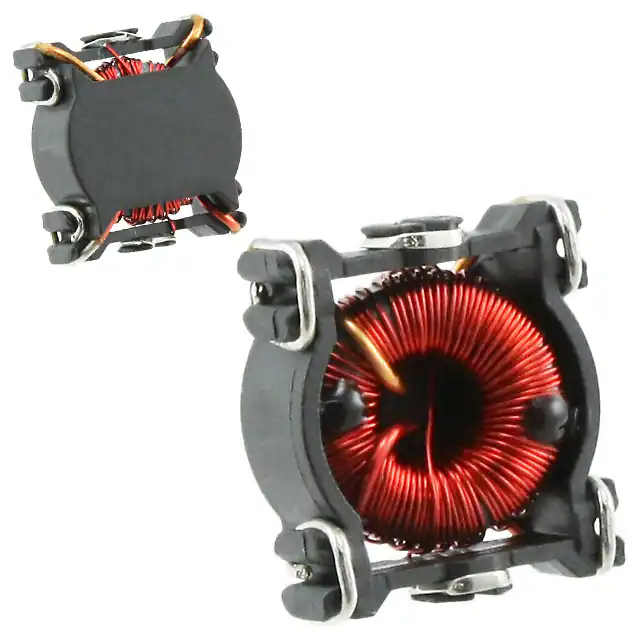

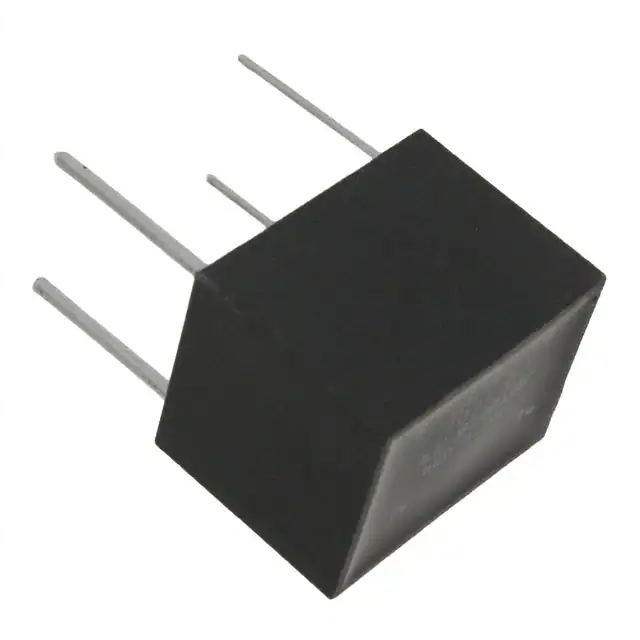

| Part Number | PE-51688NL | PE-68280NLT | PE-63587NL | PE-67100NL | PE-67200NL |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Series | THT | PE-68XXXNL | THT | - | - |
| Packaging | Tray | Tape & Reel (TR) | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Frequency Range | 20kHz ~ 200kHz | 50kHz ~ 500kHz | 20kHz ~ 200kHz | 10kHz ~ 200kHz | 10kHz ~ 200kHz |
| Type | Invasive | Invasive | Invasive | Invasive | Invasive |
| Current Rating (Amps) | 20 A | - | 20 A | 37 A | 38 A |
| Inductance | 80 mH | 14.8 mH | 20 mH | 20 mH | 80 mH |
| ET (Volt-Time) | - | - | - | - | - |
| Turns Ratio - Primary:Secondary | - | 1:1:100 | - | 1:100 | - |
| Current Ratio | 200:1 | - | 100:1 | 100:1 | 200:1 |
| DC Resistance (DCR) | 200Ohm Primary, 4.5Ohm Secondary | 1.15mOhm Primary, 930mOhm Secondary | 100Ohm Primary, 1.4Ohm Secondary | 56Ohm Primary, 1.4Ohm Secondary | 200Ohm Primary, 4.5Ohm Secondary |
| Ratings | - | - | - | - | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.495" L x 0.490" W (12.57mm x 12.45mm) | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.565" L x 0.750" W (14.35mm x 19.05mm) | 0.565" L x 0.750" W (14.35mm x 19.05mm) |
| Height - Seated (Max) | 0.800" (20.32mm) | 0.280" (7.11mm) | 0.700" (17.78mm) | 0.750" (19.05mm) | 0.750" (19.05mm) |
| Termination Style | PC Pin | - | PC Pin | PC Pin | PC Pin |
- Include Parts
- Popular Search
The following parts include "PE-51688NL" in Silicon Labs PE-51688NL.
- Part Number
- Manufacturer
- Package
- Description
- 53100C Murata Power Solutions Inc. CURR SENSE XFMR 1:100 10A SMD
- B82801B0925A200 EPCOS - TDK Electronics CURR SENSE XFMR 1:200 20A SMD
- PA1005.100NLT Pulse Electronics CURR SENSE XFMR 1:100 20A SMD
- B82801B0205A100 EPCOS - TDK Electronics CURR SENSE XFMR 1:100 SMD
- ACST-261-1 Zettler Magnetics CURRENT SENSE TRANSFORMER
- ASM-010 Talema Group LLC CURR SENSE XFMR 10A T/H
- P8205NLT Pulse Electronics CURR SENSE XFMR 1:50 SMD
- CSE187L Triad Magnetics CURR SENSE XFMR 1:500 30A T/H
- B82801C0565A100 EPCOS - TDK Electronics CURR SENSE XFMR 1:100 SMD
- PE-51688NL Pulse Electronics CURR SENSE XFMR 20A T/H
