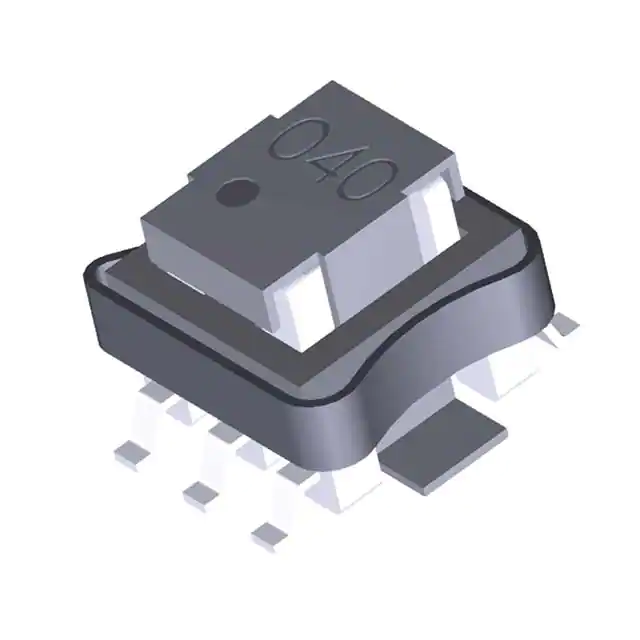

Murata Power Solutions Inc. 53100C
- Part No.:
- 53100C
- Manufacturer:
- Murata Power Solutions Inc.
- Category:
- Current Sense Transformers
- Package:
- Datasheet:
-
53100C.pdf
- Description:
- CURR SENSE XFMR 1:100 10A SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
53100C Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Murata Power Solutions Inc.
- Series:
- 5300
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Frequency Range:
- 50kHz ~ 500kHz
- Type:
- Invasive
- Current Rating (Amps):
- -
- Inductance:
- 2 mH
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1:100
- Current Ratio:
- -
- DC Resistance (DCR):
- 7mOhm Primary, 5.6Ohm Secondary
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.283" L x 0.327" W (7.20mm x 8.30mm)
- Height - Seated (Max):
- 0.213" (5.40mm)
- Termination Style:
- Gull Wing
| Image |  |
| Part Number | 53100C |
| Manufacturer | Murata Power Solutions Inc. |
| Series | 5300 |
| Packaging | Tape & Reel (TR) |
| Product Status | Active |
| Frequency Range | 50kHz ~ 500kHz |
| Type | Invasive |
| Current Rating (Amps) | - |
| Inductance | 2 mH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:100 |
| Current Ratio | - |
| DC Resistance (DCR) | 7mOhm Primary, 5.6Ohm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.283" L x 0.327" W (7.20mm x 8.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Termination Style | Gull Wing |
- Include Parts
- Popular Search
The following parts include "53100C" in Silicon Labs 53100C.
- Part Number
- Manufacturer
- Package
- Description
- 53100C Murata Power Solutions Inc. CURR SENSE XFMR 1:100 10A SMD
- B82801B0925A200 EPCOS - TDK Electronics CURR SENSE XFMR 1:200 20A SMD
- PA1005.100NLT Pulse Electronics CURR SENSE XFMR 1:100 20A SMD
- B82801B0205A100 EPCOS - TDK Electronics CURR SENSE XFMR 1:100 SMD
- ACST-261-1 Zettler Magnetics CURRENT SENSE TRANSFORMER
- ASM-010 Talema Group LLC CURR SENSE XFMR 10A T/H
- P8205NLT Pulse Electronics CURR SENSE XFMR 1:50 SMD
- CSE187L Triad Magnetics CURR SENSE XFMR 1:500 30A T/H
- B82801C0565A100 EPCOS - TDK Electronics CURR SENSE XFMR 1:100 SMD
- PE-51688NL Pulse Electronics CURR SENSE XFMR 20A T/H
