Vishay Semiconductor Opto Division VSMY98545
- Part No.:
- VSMY98545
- Manufacturer:
- Vishay Semiconductor Opto Division
- Category:
- LED Emitters - Infrared, UV, Visible
- Package:
- 3-SMD, No Lead
- Datasheet:
-
VSMY98545.pdf
- Description:
- EMITTER IR 850NM 1A SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
VSMY98545 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Vishay Semiconductor Opto Division
- Series:
- SurfLight™
- Package/Case:
- 3-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Not For New Designs
- Type:
- Infrared (IR)
- Current - DC Forward (If) (Max):
- 1A
- Radiant Intensity (Ie) Min @ If:
- 230mW/sr @ 1A
- Wavelength:
- 850nm
- Voltage - Forward (Vf) (Typ):
- 1.8V
- Viewing Angle:
- 90°
- Orientation:
- Top View
- Operating Temperature:
- -40°C ~ 95°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
| Image |  |
 |
 |
 |

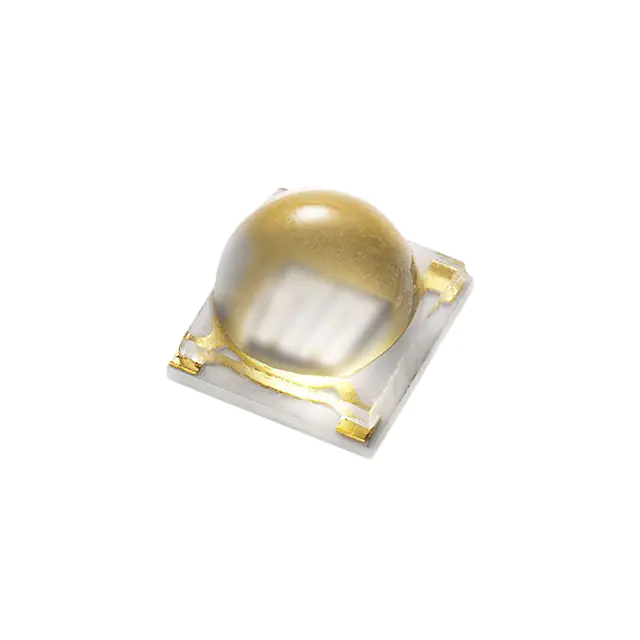

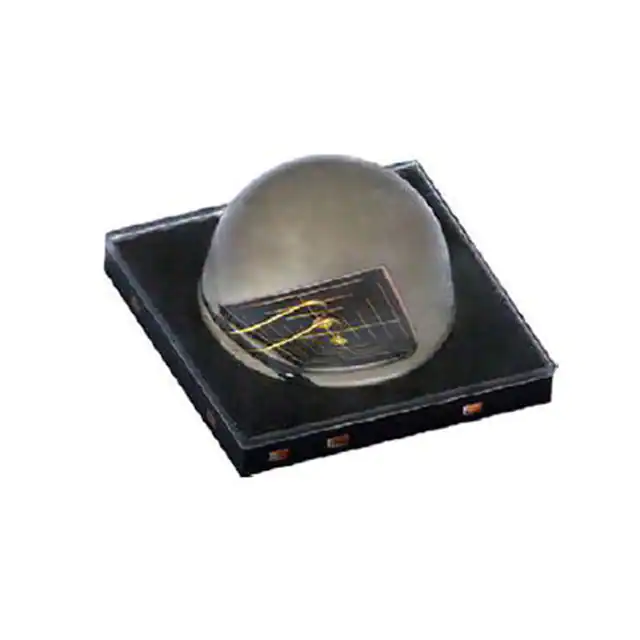

| Part Number | VSMY98545 | VSMY98545ADS | VSMY9854535 | VSMY98545DS |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Series | SurfLight™ | SurfLight™ | SurfLight™ | SurfLight™ |
| Package/Case | 3-SMD, No Lead | 3-SMD, No Lead | 3-SMD, No Lead | 2-SMD, No Lead Exposed Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Obsolete |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 1A | 1A | 1A | 1A |
| Radiant Intensity (Ie) Min @ If | 230mW/sr @ 1A | 400mW/sr @ 1A | 160mW/sr @ 1A | 300mW/sr @ 1A |
| Wavelength | 850nm | 850nm | 850nm | 850nm |
| Voltage - Forward (Vf) (Typ) | 1.8V | 3.1V | 1.8V | 3.2V |
| Viewing Angle | 90° | 90° | 90° | 90° |
| Orientation | Top View | Top View | Top View | Top View |
| Operating Temperature | -40°C ~ 95°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 110°C (TA) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
