Bivar Inc. UV5TZ-390-15
- Part No.:
- UV5TZ-390-15
- Manufacturer:
- Bivar Inc.
- Category:
- LED Emitters - Infrared, UV, Visible
- Package:
- Radial
- Description:
- EMITTER UV 390NM 20MA RADIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
UV5TZ-390-15 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bivar Inc.
- Series:
- TZ
- Package/Case:
- Radial
- Packaging:
- Bag
- Product Status:
- Active
- Type:
- Ultraviolet (UV)
- Current - DC Forward (If) (Max):
- 30mA
- Radiant Intensity (Ie) Min @ If:
- -
- Wavelength:
- 390nm
- Voltage - Forward (Vf) (Typ):
- 3.2V
- Viewing Angle:
- 15°
- Orientation:
- Top View
- Operating Temperature:
- -25°C ~ 80°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
| Image |  |
 |
 |
 |
 |

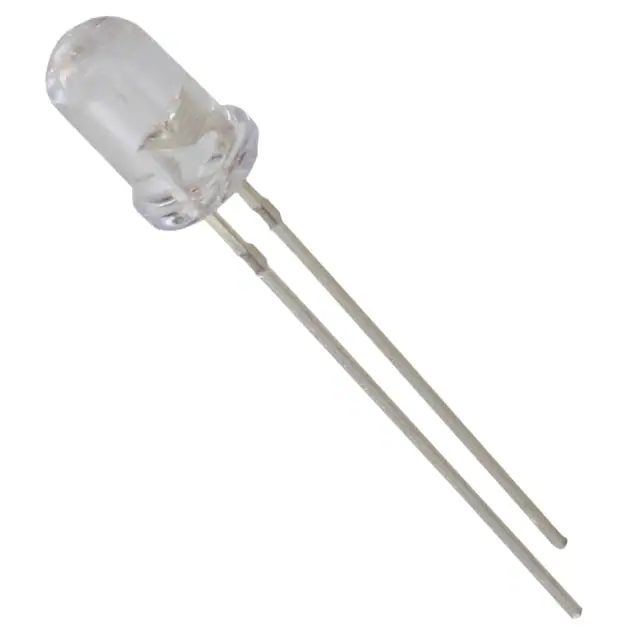

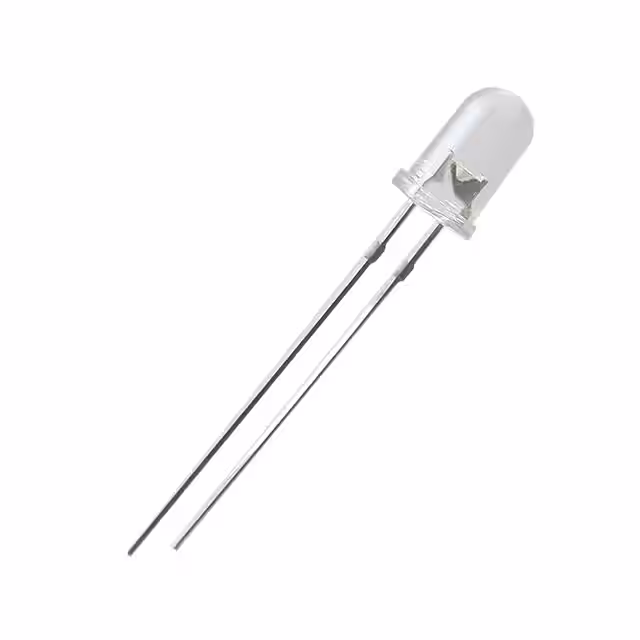

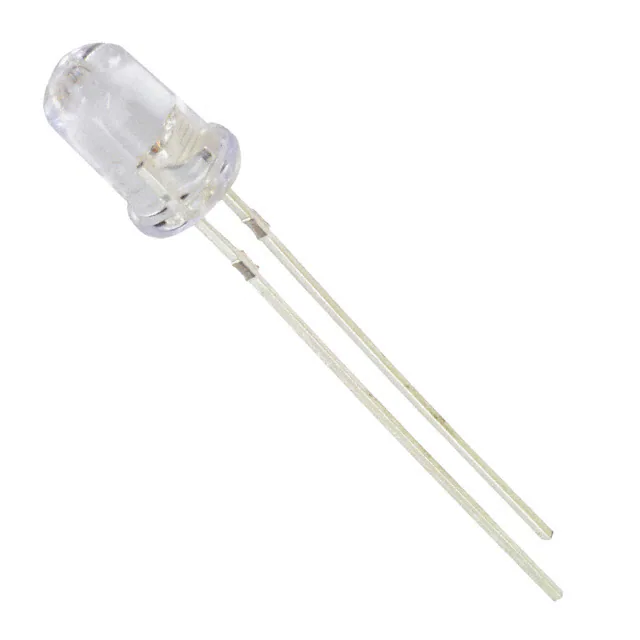

| Part Number | UV5TZ-395-30 | UV5TZ-390-15 | UV5TZ-395-15 | UV5TZ-405-30 | UV5TZ-390-30 |
| Manufacturer | Bivar Inc. | Bivar Inc. | Bivar Inc. | Bivar Inc. | Bivar Inc. |
| Series | TZ | TZ | TZ | TZ | TZ |
| Package/Case | Radial | Radial | Radial | Radial | Radial |
| Packaging | Bulk | Bag | Bag | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Type | Ultraviolet (UV) | Ultraviolet (UV) | Ultraviolet (UV) | Ultraviolet (UV) | Ultraviolet (UV) |
| Current - DC Forward (If) (Max) | 30mA | 30mA | 30mA | 30mA | 30mA |
| Radiant Intensity (Ie) Min @ If | - | - | - | - | - |
| Wavelength | 395nm | 390nm | 395nm | 403nm | 390nm |
| Voltage - Forward (Vf) (Typ) | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V |
| Viewing Angle | 30° | 15° | 15° | 30° | 30° |
| Orientation | Top View | Top View | Top View | Top View | Top View |
| Operating Temperature | -25°C ~ 80°C (TA) | -25°C ~ 80°C (TA) | -25°C ~ 80°C (TA) | -25°C ~ 80°C (TA) | -25°C ~ 80°C (TA) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
