ams-OSRAM USA INC. SFH 4235-EB-XX
- Part No.:
- SFH 4235-EB-XX
- Manufacturer:
- ams-OSRAM USA INC.
- Category:
- LED Emitters - Infrared, UV, Visible
- Package:
- 2-SMD, Gull Wing, Exposed Pad
- Datasheet:
-
SFH 4235-EB-XX.pdf
- Description:
- LED PLATINUM DRAGON SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SFH 4235-EB-XX Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ams-OSRAM USA INC.
- Series:
- Platinum DRAGON
- Package/Case:
- 2-SMD, Gull Wing, Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Type:
- Infrared (IR)
- Current - DC Forward (If) (Max):
- 1A
- Radiant Intensity (Ie) Min @ If:
- 320mW/sr @ 1A (Typ)
- Wavelength:
- 860nm
- Voltage - Forward (Vf) (Typ):
- 3V
- Viewing Angle:
- 120°
- Orientation:
- Top View
- Operating Temperature:
- -40°C ~ 125°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount

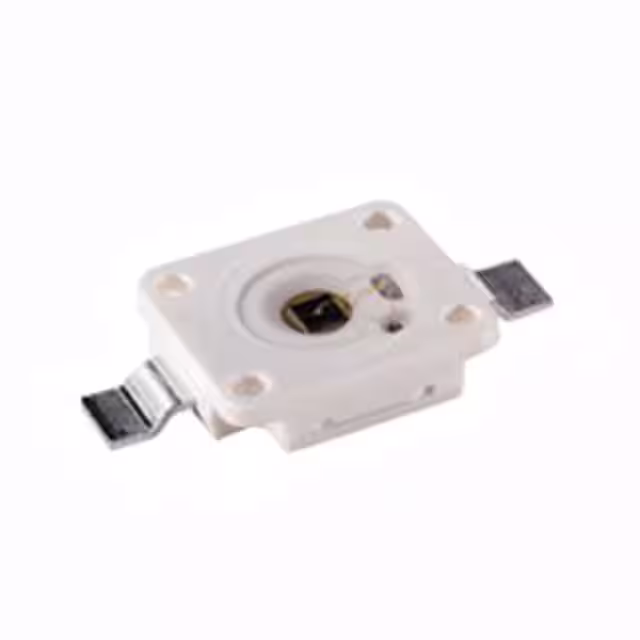

| Image | -Z.jpg) |
 |
|
| Part Number | SFH 4235-Z | SFH 4235 E9580 | SFH 4235-EB-XX |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Series | Platinum DRAGON | Platinum DRAGON | Platinum DRAGON |
| Package/Case | 2-SMD, Gull Wing | 2-SMD, Gull Wing, Exposed Pad | 2-SMD, Gull Wing, Exposed Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 1A | 1A | 1A |
| Radiant Intensity (Ie) Min @ If | 320mW/sr @ 1A | 320mW/sr @ 1A (Typ) | 320mW/sr @ 1A (Typ) |
| Wavelength | 860nm | 860nm | 860nm |
| Voltage - Forward (Vf) (Typ) | 3V | 3V | 3V |
| Viewing Angle | 120° | 120° | 120° |
| Orientation | Top View | Top View | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
