QT Brightek (QTB) QBLP670-IR1
- Part No.:
- QBLP670-IR1
- Manufacturer:
- QT Brightek (QTB)
- Category:
- LED Emitters - Infrared, UV, Visible
- Package:
- 2-LCC (J-Lead)
- Datasheet:
-
QBLP670-IR1.pdf
- Description:
- LED IR 3528 940NM WLP PLCC2
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
QBLP670-IR1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- QT Brightek (QTB)
- Series:
- QBLP670
- Package/Case:
- 2-LCC (J-Lead)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Infrared (IR)
- Current - DC Forward (If) (Max):
- 50mA
- Radiant Intensity (Ie) Min @ If:
- 0.2mW/sr @ 20mA
- Wavelength:
- 940nm
- Voltage - Forward (Vf) (Typ):
- 1.2V
- Viewing Angle:
- 120°
- Orientation:
- Top View
- Operating Temperature:
- -40°C ~ 80°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount

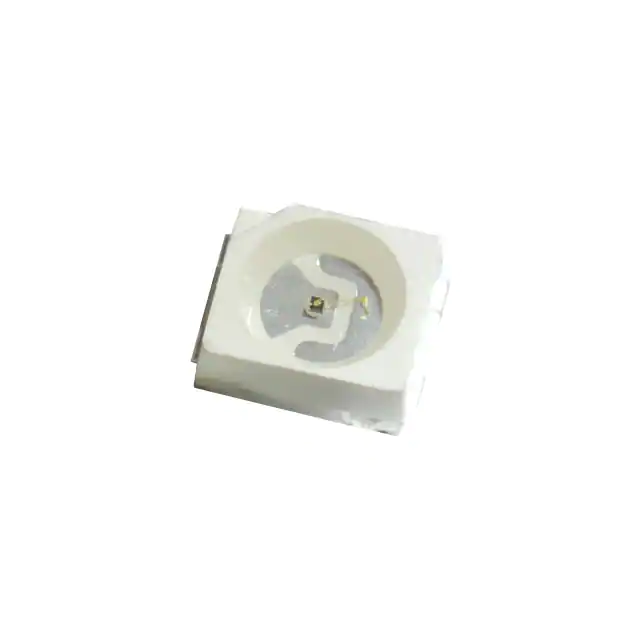

| Image |  |
|
|
 |
| Part Number | QBLP670-IR1 | QBLP670-IR2 | QBLP670-IR3 | QBLP670-UV |
| Manufacturer | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| Series | QBLP670 | QBLP670 | QBLP670 | QBLP670 |
| Package/Case | 2-LCC (J-Lead) | 2-LCC (J-Lead) | 2-LCC (J-Lead) | 2-PLCC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) | Ultraviolet (UV) |
| Current - DC Forward (If) (Max) | 50mA | 100mA | 50mA | 30mA |
| Radiant Intensity (Ie) Min @ If | 0.2mW/sr @ 20mA | 0.6mW/sr @ 50mA | 1.2mW/sr @ 20mA | - |
| Wavelength | 940nm | 880nm | 850nm | 405nm |
| Voltage - Forward (Vf) (Typ) | 1.2V | 1.7V | 1.4V | 3.2V |
| Viewing Angle | 120° | 120° | 120° | 120° |
| Orientation | Top View | Top View | Top View | Top View |
| Operating Temperature | -40°C ~ 80°C (TA) | -40°C ~ 80°C (TA) | -40°C ~ 80°C (TA) | -40°C ~ 85°C (TA) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
