QT Brightek (QTB) QBHP684E-UV265
- Part No.:
- QBHP684E-UV265
- Manufacturer:
- QT Brightek (QTB)
- Category:
- LED Emitters - Infrared, UV, Visible
- Package:
- 1414 (3535 Metric)
- Datasheet:
-
QBHP684E-UV265.pdf
- Description:
- 3535 UVC/ WLP=265NM/ PO=2.5MW @
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
QBHP684E-UV265 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- QT Brightek (QTB)
- Series:
- UV LED
- Package/Case:
- 1414 (3535 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Ultraviolet (UV)
- Current - DC Forward (If) (Max):
- 40mA
- Radiant Intensity (Ie) Min @ If:
- 1.6mW/sr @ 20mA
- Wavelength:
- 265nm
- Voltage - Forward (Vf) (Typ):
- 6V
- Viewing Angle:
- 120°
- Orientation:
- Top View
- Operating Temperature:
- -10°C ~ 50°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount

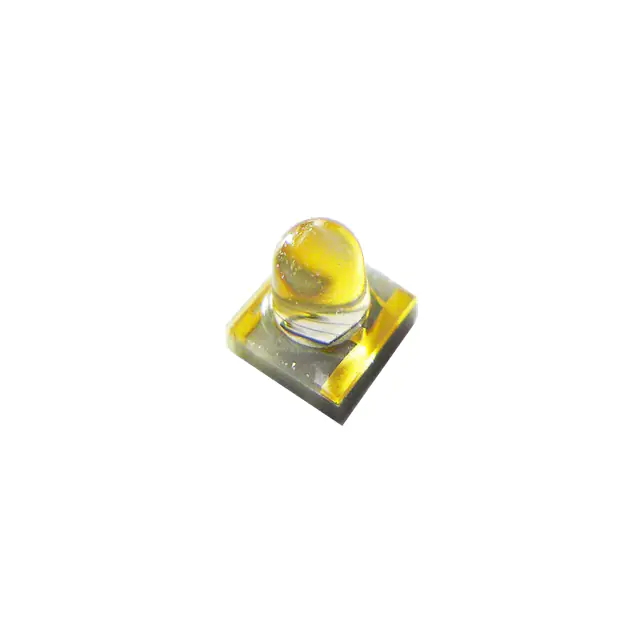

| Image |  |
 |
 |
|
|
| Part Number | QBHP684E-UV265 | QBHP684E-UV405BS | QBHP684E-UV405AS | QBHP684E-UV385AS | QBHP684E-UV265N |
| Manufacturer | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| Series | UV LED | QBPH684E-UV | QBPH684E-UV | QBPH684E-UV | UV LED |
| Package/Case | 1414 (3535 Metric) | 2-SMD, No Lead Exposed Pad | 2-SMD, No Lead Exposed Pad | 2-SMD, No Lead Exposed Pad | 1414 (3535 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Ultraviolet (UV) | Ultraviolet (UV) | Ultraviolet (UV) | Ultraviolet (UV) | Ultraviolet (UV) |
| Current - DC Forward (If) (Max) | 40mA | 700mA | 700mA | 700mA | 150mA |
| Radiant Intensity (Ie) Min @ If | 1.6mW/sr @ 20mA | - | - | - | 7mW/sr @ 100mA |
| Wavelength | 265nm | 405nm | 405nm | 385nm | 265nm |
| Voltage - Forward (Vf) (Typ) | 6V | 3.4V | 3.4V | 3.4V | 6V |
| Viewing Angle | 120° | 120° | 60° | 60° | 120° |
| Orientation | Top View | Top View | Top View | Top View | Top View |
| Operating Temperature | -10°C ~ 50°C | -40°C ~ 80°C (TA) | -40°C ~ 80°C (TA) | -40°C ~ 80°C (TA) | -10°C ~ 50°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
