KEMET MR/C-01B
- Part No.:
- MR/C-01B
- Manufacturer:
- KEMET
- Category:
- Current Sense Transformers
- Package:
- Description:
- CURR SENSE XFMR TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MR/C-01B Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- KEMET
- Series:
- MR
- Packaging:
- Bulk
- Product Status:
- Active
- Frequency Range:
- 60Hz
- Type:
- Non-Invasive (Solid Core)
- Current Rating (Amps):
- 15 A
- Inductance:
- -
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- -
- Current Ratio:
- -
- DC Resistance (DCR):
- 30Ohm
- Ratings:
- -
- Mounting Type:
- Through Hole
- Size / Dimension:
- 0.748" L x 0.689" W (19.00mm x 17.50mm)
- Height - Seated (Max):
- 0.311" (7.90mm)
- Termination Style:
- PC Pin
| Image |  |
 |
|
 |
|

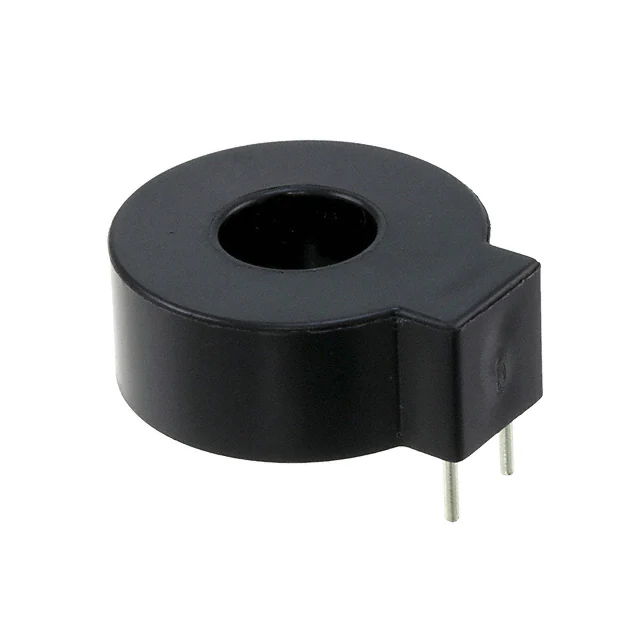

| Part Number | MR/C-01B | MR-4 | MR/C-01 | MR-1-P5 | MR-1 |
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Series | MR | MR | MR/C | MR | MR |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Frequency Range | 60Hz | 60Hz | - | 60Hz | 60Hz |
| Type | Non-Invasive (Solid Core) | Non-Invasive (Solid Core) | Invasive | Non-Invasive (Solid Core) | Non-Invasive (Solid Core) |
| Current Rating (Amps) | 15 A | 125 A | 15 A | 30 A | 30 A |
| Inductance | - | - | - | - | - |
| ET (Volt-Time) | - | - | - | - | - |
| Turns Ratio - Primary:Secondary | - | - | - | - | - |
| Current Ratio | - | - | - | - | - |
| DC Resistance (DCR) | 30Ohm | 30Ohm | 30Ohm | 25Ohm | 30Ohm |
| Ratings | - | - | - | - | - |
| Mounting Type | Through Hole | Chassis Mount | Through Hole | Through Hole | Chassis Mount |
| Size / Dimension | 0.748" L x 0.689" W (19.00mm x 17.50mm) | 1.358" L x 1.260" W (34.50mm x 32.00mm) | 0.748" L x 0.689" W (19.00mm x 17.50mm) | 0.858" L x 0.760" W (21.80mm x 19.30mm) | 0.882" L x 0.760" W (22.40mm x 19.30mm) |
| Height - Seated (Max) | 0.311" (7.90mm) | 0.425" (10.80mm) | 0.264" (6.70mm) | 0.335" (8.50mm) | 0.327" (8.30mm) |
| Termination Style | PC Pin | Wire Leads | PC Pin | PC Pin | Wire Leads |
