CR Magnetics Inc. CR8420-1000
- Part No.:
- CR8420-1000
- Manufacturer:
- CR Magnetics Inc.
- Category:
- Current Sense Transformers
- Package:
- Datasheet:
-
CR8420-1000.pdf
- Description:
- CURR SENSE XFMR 50A IN-LINE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CR8420-1000 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CR Magnetics Inc.
- Series:
- CR8400
- Packaging:
- Bulk
- Product Status:
- Active
- Frequency Range:
- 20Hz ~ 1kHz
- Type:
- Non-Invasive (Solid Core)
- Current Rating (Amps):
- 50 A
- Inductance:
- -
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- -
- Current Ratio:
- 1000:1
- DC Resistance (DCR):
- 22Ohm
- Ratings:
- -
- Mounting Type:
- Free Hanging (In-Line)
- Size / Dimension:
- 1.417" L x 1.181" W (36.00mm x 30.00mm)
- Height - Seated (Max):
- 0.362" (9.20mm)
- Termination Style:
- Wire Leads

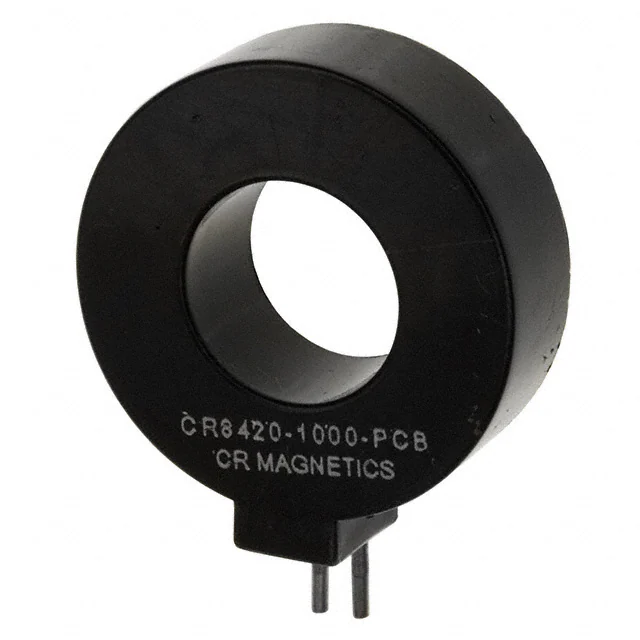

| Image |  |
 |
 |
 |
| Part Number | CR8420-1000 | CR8420-1000-G | CR8420-100 | CR8420-1000-PCB |
| Manufacturer | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. |
| Series | CR8400 | CR8400 | CR8400 | CR8400 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Obsolete | Active |
| Frequency Range | 20Hz ~ 1kHz | 20Hz ~ 1kHz | 20Hz ~ 1kHz | 20Hz ~ 1kHz |
| Type | Non-Invasive (Solid Core) | Non-Invasive (Solid Core) | Non-Invasive (Solid Core) | Non-Invasive (Solid Core) |
| Current Rating (Amps) | 50 A | 20 A | - | - |
| Inductance | - | - | - | - |
| ET (Volt-Time) | - | - | - | - |
| Turns Ratio - Primary:Secondary | - | - | - | - |
| Current Ratio | 1000:1 | 1000:1 | - | - |
| DC Resistance (DCR) | 22Ohm | 44Ohm | - | - |
| Ratings | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Size / Dimension | 1.417" L x 1.181" W (36.00mm x 30.00mm) | 1.417" L x 1.181" W (36.00mm x 30.00mm) | 1.417" L x 1.181" W (36.00mm x 30.00mm) | 1.417" L x 1.181" W (36.00mm x 30.00mm) |
| Height - Seated (Max) | 0.362" (9.20mm) | 0.362" (9.20mm) | 0.362" (9.20mm) | 0.362" (9.20mm) |
| Termination Style | Wire Leads | Wire Leads | Wire Leads | Wire Leads |
