Talema Group LLC AZ-0500
- Part No.:
- AZ-0500
- Manufacturer:
- Talema Group LLC
- Category:
- Current Sense Transformers
- Package:
- Datasheet:
-
AZ-0500.pdf
- Description:
- CURR SENSE XFMR 25A IN-LINE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AZ-0500 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Talema Group LLC
- Series:
- AZ
- Packaging:
- Tray
- Product Status:
- Active
- Frequency Range:
- 50Hz ~ 60Hz
- Type:
- Non-Invasive (Solid Core)
- Current Rating (Amps):
- 25 A
- Inductance:
- -
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 500:1
- Current Ratio:
- -
- DC Resistance (DCR):
- 18Ohm Primary
- Ratings:
- -
- Mounting Type:
- Free Hanging (In-Line)
- Size / Dimension:
- 0.748" Dia (19.00mm)
- Height - Seated (Max):
- 0.453" (11.50mm)
- Termination Style:
- Wire Leads

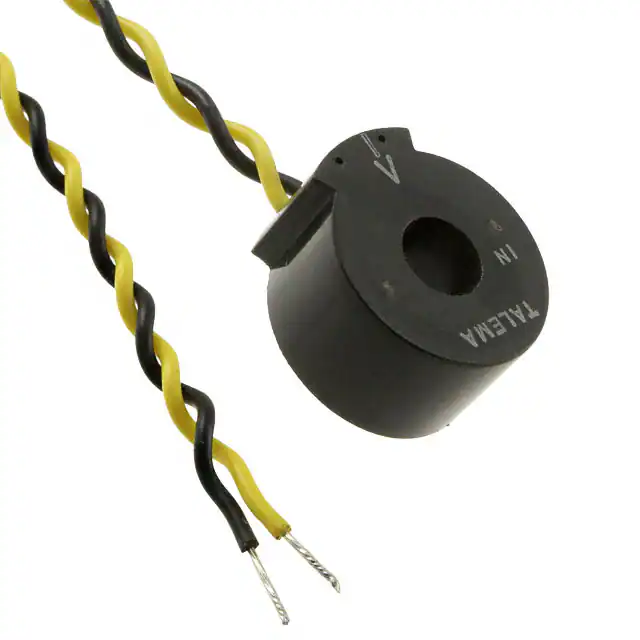

| Image |  |
 |
 |
| Part Number | AZ-0500 | AZ-1000 | AZ-0750 |
| Manufacturer | Talema Group LLC | Talema Group LLC | Talema Group LLC |
| Series | AZ | AZ | AZ |
| Packaging | Tray | Tray | Tray |
| Product Status | Active | Active | Active |
| Frequency Range | 50Hz ~ 60Hz | 50Hz ~ 60Hz | 50Hz ~ 60Hz |
| Type | Non-Invasive (Solid Core) | Non-Invasive (Solid Core) | Non-Invasive (Solid Core) |
| Current Rating (Amps) | 25 A | 50 A | 40 A |
| Inductance | - | - | - |
| ET (Volt-Time) | - | - | - |
| Turns Ratio - Primary:Secondary | 500:1 | 1000:1 | 750:1 |
| Current Ratio | - | - | - |
| DC Resistance (DCR) | 18Ohm Primary | 72Ohm Primary | 35Ohm Primary |
| Ratings | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Chassis Mount | Surface Mount |
| Size / Dimension | 0.748" Dia (19.00mm) | 0.748" Dia (19.00mm) | 0.748" Dia (19.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.453" (11.50mm) | 0.453" (11.50mm) |
| Termination Style | Wire Leads | Wire Leads | Wire Leads |
