American Bright Optoelectronics Corporation AB-3535CJ-F1F
- Part No.:
- AB-3535CJ-F1F
- Manufacturer:
- American Bright Optoelectronics Corporation
- Category:
- LED Emitters - Infrared, UV, Visible
- Package:
- 1414 (3535 Metric)
- Datasheet:
-
AB-3535CJ-F1F.pdf
- Description:
- 3535 CERAMIC IR EMITTER W/ DOME
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AB-3535CJ-F1F Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- American Bright Optoelectronics Corporation
- Series:
- 3535C1
- Package/Case:
- 1414 (3535 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Infrared (IR)
- Current - DC Forward (If) (Max):
- 1A
- Radiant Intensity (Ie) Min @ If:
- 160mW/sr @ 350mA (Typ)
- Wavelength:
- 850nm
- Voltage - Forward (Vf) (Typ):
- 3V
- Viewing Angle:
- 120°
- Orientation:
- Top View
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
| Image |  |
 |
 |
 |
 |

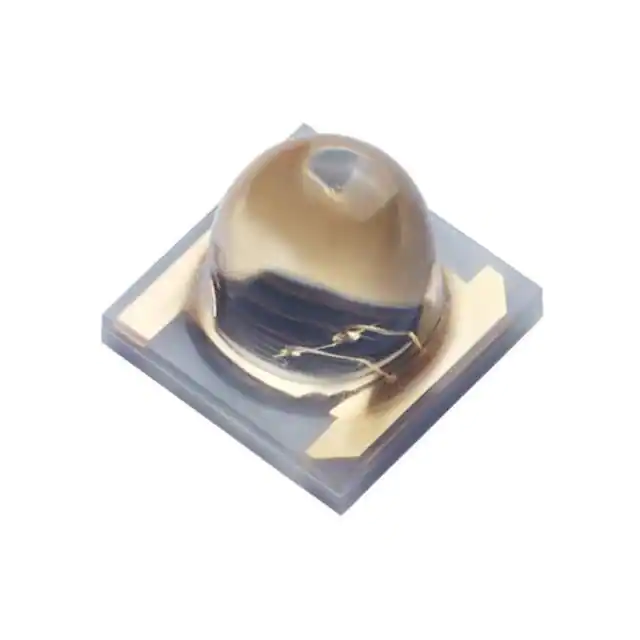

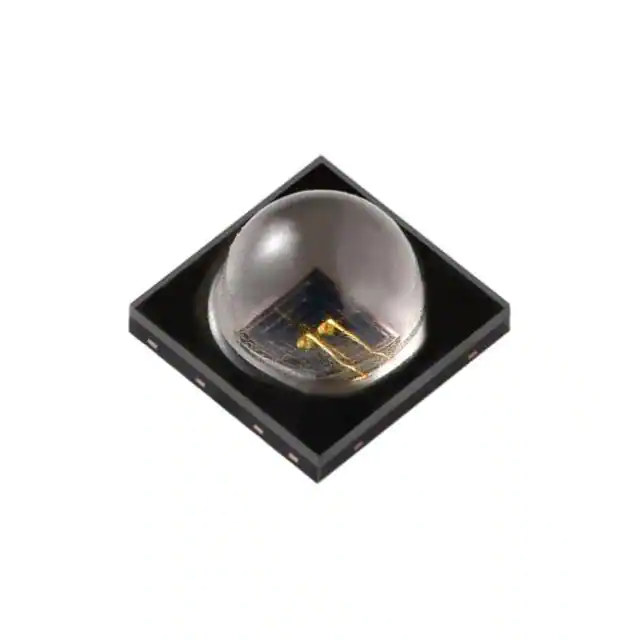

| Part Number | AB-3535CJ-F1F | AB-3535CJ-F4F | AB-3535CJ-F4D | AB-3535CJ-F1D | AB-3838EJ-F1E |
| Manufacturer | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation |
| Series | 3535C1 | 3535C1 | 3535C1 | 3535C1 | AB-3838EJ |
| Package/Case | 1414 (3535 Metric) | 1414 (3535 Metric) | 1414 (3535 Metric) | 1414 (3535 Metric) | 3-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 1A | 1A | 1A | 1A | 1A |
| Radiant Intensity (Ie) Min @ If | 160mW/sr @ 350mA (Typ) | 160mW/sr @ 350mA (Typ) | 280mW/sr @ 350mA (Typ) | 280mW/sr @ 350mA (Typ) | - |
| Wavelength | 850nm | 950nm | 940nm | 850nm | - |
| Voltage - Forward (Vf) (Typ) | 3V | 3V | 3V | 3V | 3V |
| Viewing Angle | 120° | 120° | 60° | 60° | 90° |
| Orientation | Top View | Top View | Top View | Top View | Top View |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
