Murata Power Solutions Inc. 55050C
- Part No.:
- 55050C
- Manufacturer:
- Murata Power Solutions Inc.
- Category:
- Current Sense Transformers
- Package:
- Datasheet:
-
55050C.pdf
- Description:
- CURR SENSE XFMR 1:1:50 15A SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
55050C Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Murata Power Solutions Inc.
- Series:
- 5500
- Packaging:
- Tube
- Product Status:
- Obsolete
- Frequency Range:
- 50kHz ~ 500kHz
- Type:
- Invasive
- Current Rating (Amps):
- -
- Inductance:
- 3.8 mH
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1:1:50
- Current Ratio:
- -
- DC Resistance (DCR):
- 2.3mOhm Primary, 350mOhm Secondary
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.496" L x 0.575" W (12.60mm x 14.60mm)
- Height - Seated (Max):
- 0.280" (7.10mm)
- Termination Style:
- -

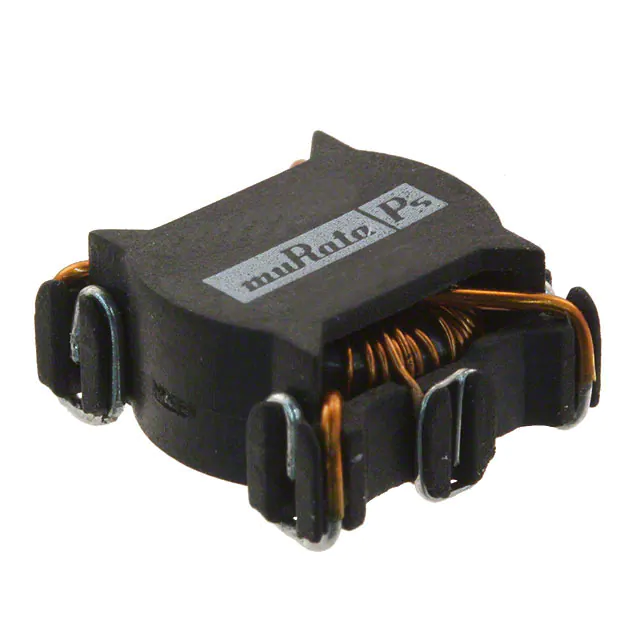

| Image |  |
 |
| Part Number | 55050C-R | 55050C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Series | 5500 | 5500 |
| Packaging | Tape & Reel (TR) | Tube |
| Product Status | Obsolete | Obsolete |
| Frequency Range | 50kHz ~ 500kHz | 50kHz ~ 500kHz |
| Type | Invasive | Invasive |
| Current Rating (Amps) | 15 A | - |
| Inductance | 3.8 mH | 3.8 mH |
| ET (Volt-Time) | - | - |
| Turns Ratio - Primary:Secondary | 1:1:50 | 1:1:50 |
| Current Ratio | - | - |
| DC Resistance (DCR) | 2.3mOhm Primary, 350mOhm Secondary | 2.3mOhm Primary, 350mOhm Secondary |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Size / Dimension | 0.575" L x 0.496" W (14.60mm x 12.60mm) | 0.496" L x 0.575" W (12.60mm x 14.60mm) |
| Height - Seated (Max) | 0.280" (7.10mm) | 0.280" (7.10mm) |
| Termination Style | - | - |
