KOE SX19V010
- Part No.:
- SX19V010
- Manufacturer:
- KOE
- Category:
- STN Graphic Display
- Package:
- Description:
- KOE 7.5" 640×480 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
SX19V010 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- KOE
- Panel Size:
- 7.5"
- Panel Type:
- CSTN-LCD
- Resolution:
- 640×480
- Viewing Area:
- 158.0×118.0
- Outline Size:
- 197 × 145 × 8.5 (H×V×D)
- Treatment:
- Antiglare
- Brightness:
- 150 cd/m² (Typ.)
- Contrast Ratio:
- 25 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- -
- Response Time:
- 340/100 (Typ.)(Tr/Td) ms
- Best View on:
- 6 o'clock
- Work Mode:
- STN, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Color 20% NTSC
- Backlight:
- 2 pcs CCFL , 20K hours , No Driver
- Mass:
- 260g (Typ.)
- Touch Screen:
- Without
- Refresh Rate:
- 100Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 8-bit) , 20 pins FPC

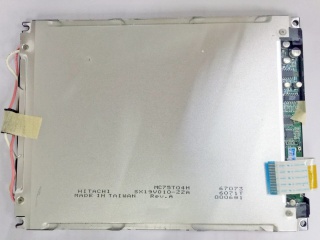

| Image |  |
 |
| Part Number | SX19V010 | SX19V010-ZZA |
| Manufacturer | KOE | KOE |
| Panel Size | 7.5" | 7.5" |
| Panel Type | CSTN-LCD | CSTN-LCD |
| Resolution | 640×480 | 640×480 |
| Viewing Area | 158.0×118.0 | 158.0×118.0 |
| Outline Size | 197 × 145 × 8.5 (H×V×D) | 197(W)×145(H) ×10.1(D) mm |
| Treatment | Antiglare | Antiglare |
| Brightness | 150 cd/m² (Typ.) | 120 cd/m² (Typ.) |
| Contrast Ratio | 25 : 1 (Typ.) (TM) | 25:1 (Typ.) (TM) |
| View Direction | ||
| Viewing Angle | - | - |
| Response Time | 340/100 (Typ.)(Tr/Td) ms | 340/100 (Typ.)(Tr/Td) |
| Best View on | 6 o'clock | 6 o'clock |
| Work Mode | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | Color 20% NTSC | Color 42% NTSC |
| Backlight | 2 pcs CCFL , 20K hours , No Driver | 2 pcs CCFL , 20K hours , Without Driver |
| Mass | 260g (Typ.) | 350g (Typ.) |
| Touch Screen | Without | 4-wire Resistive Touch |
| Refresh Rate | 100Hz | 100Hz |
| Driver IC list | ||
| Signal Type | Parallel Data (1ch, 8-bit) , 20 pins FPC | Parallel Data (1ch, 8-bit) , 20 pins FPC |
