Kyocera Display KG057QV1CA-G00
- Part No.:
- KG057QV1CA-G00
- Manufacturer:
- Kyocera Display
- Category:
- STN Graphic Display
- Package:
- Description:
- Kyocera Display 5.7" 320×240 FSTN-LCD Black/White (Negative) Transmissive CCFL Parallel Data 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
KG057QV1CA-G00 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kyocera Display
- Panel Size:
- 5.7"
- Panel Type:
- FSTN-LCD
- Resolution:
- 320×240
- Viewing Area:
- 119.4×90.6
- Outline Size:
- 144(H)×104.8(V)×13.2(D) mm
- Treatment:
- Glare (Haze 0%)
- Brightness:
- 220 cd/m² (Typ.)
- Contrast Ratio:
- 10:1 (Typ.) (TM)
- View Direction:
- -
- Viewing Angle:
- 45/45/20/45 (Typ.)(CR≥2) (Left / Right / Up / Down)
- Response Time:
- 210/130 (Typ.)(Tr/Td)
- Best View on:
- Work Mode:
- STN, Black/White (Negative), Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Monochrome
- Backlight:
- CCFL [1 pcs] , 58K hours , Optional
- Mass:
- 175g
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 4-bit) , 20 pins Connector
| Image |  |
 |
 |
 |
 |

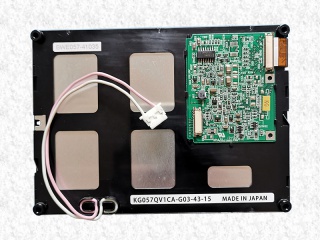

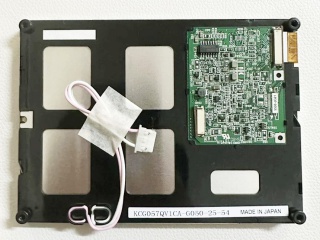

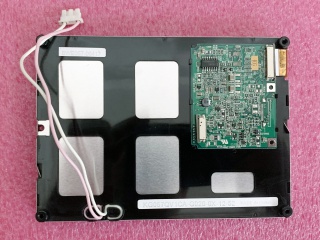

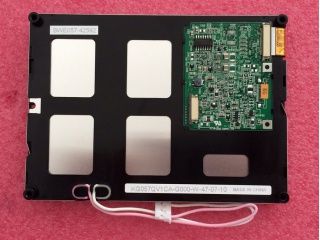

| Part Number | KG057QV1CA-G00 | KG057QV1CA-G020 | KG057QV1CA-G03 | KG057QV1CA-G000 | KG057QV1CA-G050 |
| Manufacturer | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display |
| Panel Size | 5.7" | 5.7" | 5.7" | 5.7" | 5.7" |
| Panel Type | FSTN-LCD | STN-LCD | STN-LCD | FSTN-LCD | FSTN-LCD |
| Resolution | 320×240 | 320×240 | 320×240 | 320×240 | 320×240 |
| Viewing Area | 119.4×90.6 | 119.4×90.6 | 119.4×90.6 | ||
| Outline Size | 144(H)×104.8(V)×13.2(D) mm | 144 × 104.8 × 13.2 (H×V×D) | 144(W)×104.8(H) ×13.2(D) mm | 144(W)×104.8(H)×13.2(D) | |
| Treatment | Glare (Haze 0%) | Glare (Haze 0%) | Glare (Haze 0%) | Glare (Haze 0%) | |
| Brightness | 220 cd/m² (Typ.) | 260 cd/m² (Typ.) | 220 cd/m² (Typ.) | 220 (Typ.)(cd/m²) | |
| Contrast Ratio | 10:1 (Typ.) (TM) | 4 : 1 (Typ.) (TM) | 10:1 (Typ.) (TM) | 40 : 1 (Typ.) (TM) | |
| View Direction | - | ||||
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥2) (Left / Right / Up / Down) | 45/45/20/40 (Typ.)(CR≥2) (Left / Right / Up / Down) | - | 45/45/20/40 (Min.)(CR≥2) (Left / Right / Up / Down) | 45/45/30/40 (Typ.)(CR≥2) |
| Response Time | 210/130 (Typ.)(Tr/Td) | 380/120 (Typ.)(Tr/Td) ms | - | 500 (Typ.)(Tr+Td) | 500 (Typ.)(Tr+Td) ms |
| Best View on | - | - | - | - | |
| Work Mode | STN, Black/White (Negative), Transmissive | STN, Blue mode (Negative), Transmissive | STN | STN, Black/White (Negative), Transmissive | STN, Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | Monochrome | Monochrome | Monochrome | Monochrome | Monochrome |
| Backlight | CCFL [1 pcs] , 58K hours , Optional | 1 pcs CCFL , 58K hours , Optional | 1 pcs CCFL | 1 pcs CCFL , 58K hours , Without Driver | 1 pcs CCFL , 58K hours |
| Mass | 175g | 175g | - | 175g | 175g |
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 75Hz | 75Hz | - | 75Hz | |
| Driver IC list | |||||
| Signal Type | Parallel Data (1ch, 4-bit) , 20 pins Connector | Parallel Data (1ch, 4-bit) , 20 pins Connector | Parallel Data (1ch, 4-bit) | Parallel Data Connector |
