KOE SP14Q006
- Part No.:
- SP14Q006
- Manufacturer:
- KOE
- Category:
- STN Graphic Display
- Package:
- Description:
- KOE 5.7" 320×240 FSTN-LCD Black/White mode Transmissive WLED Parallel Data 14pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
SP14Q006 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- KOE
- Panel Size:
- 5.7"
- Panel Type:
- FSTN-LCD
- Resolution:
- 320×240
- Viewing Area:
- 122.0×92.0
- Outline Size:
- 167(H)×109(V)×10(D) mm
- Treatment:
- Antiglare
- Brightness:
- 150 cd/m² (Typ.)
- Contrast Ratio:
- 25:1 (Typ.) (TM)
- View Direction:
- 6 o'clock
- Viewing Angle:
- -
- Response Time:
- 336/148 (Typ.)(Tr/Td)
- Best View on:
- Work Mode:
- STN, Black/White mode, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Monochrome
- Backlight:
- WLED , 40K hours , W/O Driver
- Mass:
- -
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 4-bit) , 14 pins FPC
| Image |  |
 |
 |
 |

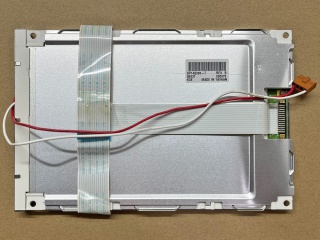

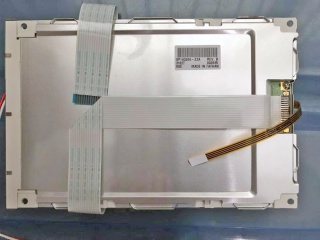

| Part Number | SP14Q006 | SP14Q006-TZA | SP14Q006-ZZA | SP14Q006-T |
| Manufacturer | KOE | KOE | KOE | KOE |
| Panel Size | 5.7" | 5.7" | 5.7" | 5.7" |
| Panel Type | FSTN-LCD | FSTN-LCD | FSTN-LCD | FSTN-LCD |
| Resolution | 320×240 | 320×240 | 320×240 | 320×240 |
| Viewing Area | 122.0×92.0 | 122.0×92.0 | 122.0×92.0 | 122.0×92.0 |
| Outline Size | 167(H)×109(V)×10(D) mm | 167 × 109 × 10 (H×V×D) | 167(W)×109(H) ×10(D) mm | 167(W)×109(H)×10(D) mm |
| Treatment | Antiglare | Antiglare, Hard coating (3H) | Antiglare | Antiglare |
| Brightness | 150 cd/m² (Typ.) | 40 cd/m² (Typ.) | 110 cd/m² (Typ.) | 60 cd/m² (Typ.) |
| Contrast Ratio | 25:1 (Typ.) (TM) | 5 : 1 (Typ.) (TM) | 25:1 (Typ.) (TM) | 5:1 (Typ.) (TM) |
| View Direction | 6 o'clock | 6 o'clock | ||
| Viewing Angle | - | - | 45/45/40/40 (Typ.)(CR≥2) (Left / Right / Up / Down) | 45/45/40/40 (Typ.)(CR≥2) (Left / Right / Up / Down) |
| Response Time | 336/148 (Typ.)(Tr/Td) | 336/148 (Typ.)(Tr/Td) ms | 336/148 (Typ.)(Tr/Td) | 336/148 (Typ.)(Tr/Td) |
| Best View on | 6 o'clock | 6 o'clock | ||
| Work Mode | STN, Black/White mode, Transmissive | STN, Black/White mode, Transflective | STN, Black/White mode, Transmissive | STN, Black/White mode, Transflective |
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | Monochrome | Monochrome | Monochrome | Monochrome |
| Backlight | WLED , 40K hours , W/O Driver | WLED , 40K hours , No Driver | WLED , 40K hours , Without Driver | WLED , 40K hours , W/O Driver |
| Mass | - | - | - | - |
| Touch Screen | Without | 4-wire Resistive Touch | 4-wire Resistive Touch | Without |
| Refresh Rate | 75Hz | 75Hz | 75Hz | 75Hz |
| Driver IC list | ||||
| Signal Type | Parallel Data (1ch, 4-bit) , 14 pins FPC | Parallel Data (1ch, 4-bit) , 14 pins FPC | Parallel Data (1ch, 4-bit) , 14 pins FPC | Parallel Data (1ch, 4-bit) , 14 pins FPC |
