Sharp LM8V302
- Part No.:
- LM8V302
- Manufacturer:
- Sharp
- Category:
- STN Graphic Display
- Package:
- Description:
- Sharp 7.7" 640×480 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 29pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
LM8V302 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sharp
- Panel Size:
- 7.7"
- Panel Type:
- CSTN-LCD
- Resolution:
- 640×480
- Viewing Area:
- 161.4×122.1
- Outline Size:
- 197(W)×142.5(H)×8(D) mm
- Treatment:
- Brightness:
- 120 cd/m² (Typ.)
- Contrast Ratio:
- View Direction:
- Viewing Angle:
- 50/50/50/30 (Typ.)(CR≥2) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- -
- Work Mode:
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Color
- Backlight:
- Mass:
- 240g (Typ.)
- Touch Screen:
- Refresh Rate:
- 120Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 8-bit) , 29 pins Connector
| Image |  |
 |
 |
 |

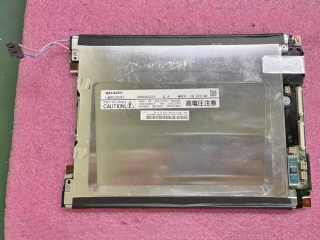

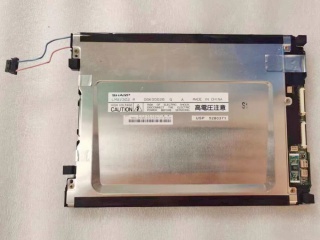

| Part Number | LM8V302 | LM8V302R | LM8V302D | LM8V302H |
| Manufacturer | Sharp | Sharp | Sharp | Sharp |
| Panel Size | 7.7" | 7.7" | 7.7" | 7.7" |
| Panel Type | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD |
| Resolution | 640×480 | 640×480 | 640×480 | 640×480 |
| Viewing Area | 161.4×122.1 | 163.4×124.1 | ||
| Outline Size | 197(W)×142.5(H)×8(D) mm | 199(H)×147(V)×10.5(D) mm | ||
| Treatment | Glare (Haze 0%) | |||
| Brightness | 120 cd/m² (Typ.) | 200 cd/m² (Typ.) | ||
| Contrast Ratio | 25:1 (Typ.) (TM) | |||
| View Direction | - | - | ||
| Viewing Angle | 50/50/50/30 (Typ.)(CR≥2) (Left / Right / Up / Down) | - | - | - |
| Response Time | - | 160/140 (Typ.)(Tr/Td) | - | |
| Best View on | - | - | ||
| Work Mode | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | |
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | Color | Color | Color 40% NTSC | Color |
| Backlight | CCFL [1 pcs] | CCFL [2 pcs] , 40K hours , W/O Driver | 1 pcs CCFL | |
| Mass | 240g (Typ.) | - | 330g | - |
| Touch Screen | Without | |||
| Refresh Rate | 120Hz | - | ||
| Driver IC list | ||||
| Signal Type | Parallel Data (1ch, 8-bit) , 29 pins Connector | Parallel Data (1ch, 8-bit) Connector | Parallel Data (2ch, 8-bit) , 29 pins Connector | Parallel Data (1ch, 8-bit) Connector |
- Include Parts
- Popular Search
The following parts include "LM8V302" in Silicon Labs LM8V302.
- Part Number
- Manufacturer
- Package
- Description
- SP12Q01L6ALZZ KOE KOE 4.7" 320×240 FSTN-LCD Black/White mode Transmissive WLED Parallel Data 12pins
- KCG057QV1DB-G760 Kyocera Display Kyocera Display 5.7" 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 20pins
- KG057QV1CA-G00 Kyocera Display Kyocera Display 5.7" 320×240 FSTN-LCD Black/White (Negative) Transmissive CCFL Parallel Data 20pins
- SP14N02L6ALCZ KOE KOE 5.1" 240×128 FSTN-LCD Black/White (Negative) Transmissive WLED LC7981 CPU 20pins
- LMG7420PLFC-X KOE KOE 5.1" 240×128 FSTN-LCD Black/White (Negative) Transmissive CCFL T6963C CPU 20pins
- LMG5278XUFC-00T KOE KOE 9.4" 640×480 FSTN-LCD Black/White (Negative) Transmissive CCFL Parallel Data 15pins
- LM8V302 Sharp Sharp 7.7" 640×480 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 29pins
- SP12N002 KOE KOE 4.8" 256×64 FSTN-LCD Black/White mode Transmissive CCFL T6963C CPU 20pins
- SP14Q006 KOE KOE 5.7" 320×240 FSTN-LCD Black/White mode Transmissive WLED Parallel Data 14pins
- KCG057QV1DB-G50 Kyocera Display Kyocera Display 5.7" 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 20pins
