KOE SX19V001-Z2A
- Part No.:
- SX19V001-Z2A
- Manufacturer:
- KOE
- Category:
- STN Graphic Display
- Package:
- Description:
- KOE 7.5" 640×480 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 28pins RTP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
SX19V001-Z2A Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- KOE
- Panel Size:
- 7.5"
- Panel Type:
- CSTN-LCD
- Resolution:
- 640×480
- Viewing Area:
- Outline Size:
- 197(H)×145(V) mm
- Treatment:
- Brightness:
- -
- Contrast Ratio:
- View Direction:
- 6 o'clock
- Viewing Angle:
- 40 (Typ.)(CR≥2, Φ2-Φ1) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- Work Mode:
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Color
- Backlight:
- Mass:
- -
- Touch Screen:
- Refresh Rate:
- 100Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 8-bit) , 28 pins Connector
| Image |  |
 |
 |
 |
 |

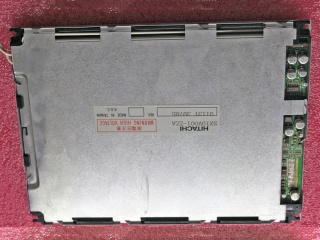

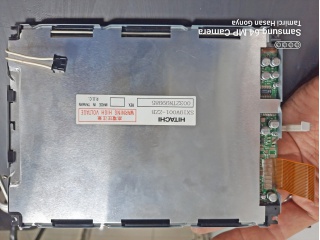

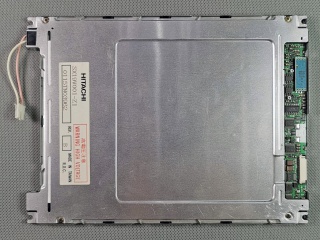

| Part Number | SX19V001-Z1 | SX19V001-Z1A | SX19V001-ZZA | SX19V001-ZZB | SX19V001-Z2A |
| Manufacturer | KOE | KOE | KOE | KOE | KOE |
| Panel Size | 7.5" | 7.5" | 7.5" | 7.5" | 7.5" |
| Panel Type | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD |
| Resolution | 640×480 | 640×480 | 640×480 | 640×480 | 640×480 |
| Viewing Area | 158.5×118.0 | 158.5×118.0 | |||
| Outline Size | 197(W)×145(H) ×6.5(D) mm | 197(W)×145(H) ×8.2(D) mm | 197(W)×145(H) ×11.4(D) mm | 197(W)×145(H)×11(D) mm | 197(H)×145(V) mm |
| Treatment | Antiglare, Hard coating (3H) | - | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | |
| Brightness | 60 cd/m² (Typ.) | 70 cd/m² (Typ.) | 65 cd/m² (Typ.) | 60 cd/m² (Typ.) | - |
| Contrast Ratio | 30:1 (Typ.) (TM) | 30:1 (Typ.) (TM) | 25:1 (Typ.) (TM) | 25:1 (Typ.) (TM) | |
| View Direction | 6 o'clock | 6 o'clock | |||
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) (Left / Right / Up / Down) | 40 (Typ.)(CR≥2, Φ2-Φ1) (Left / Right / Up / Down) | 40 (Typ.)(CR≥2, Φ2-Φ1) | 40 (Typ.)(CR≥2, Φ2-Φ1) (Left / Right / Up / Down) | 40 (Typ.)(CR≥2, Φ2-Φ1) (Left / Right / Up / Down) |
| Response Time | 220/180 (Typ.)(Tr/Td) | 220/180 (Typ.)(Tr/Td) | 350/200 (Typ.)(Tr/Td) | 350/200 (Typ.)(Tr/Td) | |
| Best View on | 6 o'clock | 6 o'clock | 6 o'clock | ||
| Work Mode | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | Color 28% NTSC | Color 31% NTSC | Color 36% NTSC | Color 45% NTSC | Color |
| Backlight | 1 pcs CCFL , Without Driver | 1 pcs CCFL , Without Driver | 1 pcs CCFL , Without Driver | CCFL [1 pcs] , W/O Driver | |
| Mass | 220g (Typ.) | 290g (Typ.) | - | - | - |
| Touch Screen | Without | 4-wire Resistive Touch | 4-wire Resistive Touch | 4-wire Resistive Touch | |
| Refresh Rate | 100Hz | 100Hz | 120Hz | 120Hz | 100Hz |
| Driver IC list | |||||
| Signal Type | Parallel Data (1ch, 8-bit) , 28 pins Connector | Parallel Data (1ch, 8-bit) , 28 pins Connector | Parallel Data (1ch, 8-bit) , 22 pins FPC | Parallel Data (1ch, 8-bit) , 22 pins FPC | Parallel Data (1ch, 8-bit) , 28 pins Connector |
