KOE SP10Q010
- Part No.:
- SP10Q010
- Manufacturer:
- KOE
- Category:
- STN Graphic Display
- Package:
- Description:
- KOE 3.8" 320×240 FSTN-LCD Black/White (Negative) Transmissive WLED Parallel Data 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
SP10Q010 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- KOE
- Panel Size:
- 3.8"
- Panel Type:
- FSTN-LCD
- Resolution:
- 320×240
- Viewing Area:
- 81.8×63.0
- Outline Size:
- 94.7(W)×73.3(H) ×6(D) mm
- Treatment:
- Glare (Haze 0%)
- Brightness:
- 110 cd/m² (Typ.)
- Contrast Ratio:
- 20:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 80 (Typ.)(CR≥2, Φ2-Φ1) (Left / Right / Up / Down)
- Response Time:
- 150/350 (Typ.)(Tr/Td)
- Best View on:
- 6 o'clock
- Work Mode:
- STN, Black/White (Negative), Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Monochrome
- Backlight:
- 1S6P WLED , Without Driver
- Mass:
- -
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 4-bit) , 20 pins FPC
| Image |  |
 |
 |
 |

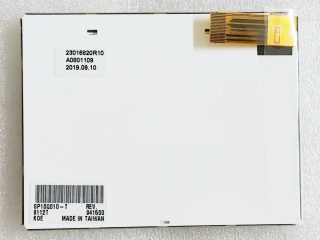

| Part Number | SP10Q010 | SP10Q010-TZA | SP10Q010-ZZA | SP10Q010-T |
| Manufacturer | KOE | KOE | KOE | KOE |
| Panel Size | 3.8" | 3.8" | 3.8" | 3.8" |
| Panel Type | FSTN-LCD | FSTN-LCD | FSTN-LCD | FSTN-LCD |
| Resolution | 320×240 | 320×240 | 320×240 | 320×240 |
| Viewing Area | 81.8×63.0 | 79.8×60.6 | 79.8×60.6 | |
| Outline Size | 94.7(W)×73.3(H) ×6(D) mm | 94.7(W)×73.3(H)×7(D) mm | 94.7(W)×73.3(H)×7(D) mm | 94.7(W)×73.3(H)×6(D) |
| Treatment | Glare (Haze 0%) | Antiglare, Hard coating (2H) | - | |
| Brightness | 110 cd/m² (Typ.) | 50 cd/m² (Typ.) | 90 cd/m² (Typ.) | 60 (Typ.)(cd/m²) |
| Contrast Ratio | 20:1 (Typ.) (TM) | 4:1 (Typ.) (TM) | 5 : 1 (Typ.) (TM) | |
| View Direction | 6 o'clock | |||
| Viewing Angle | 80 (Typ.)(CR≥2, Φ2-Φ1) (Left / Right / Up / Down) | 80 (Typ.)(CR≥2, Φ2-Φ1) | 80 (Typ.)(CR≥2, Φ2-Φ1) (Left / Right / Up / Down) | 80 (Typ.)(CR≥2, Φ2-Φ1) |
| Response Time | 150/350 (Typ.)(Tr/Td) | 150/350 (Typ.)(Tr/Td) | 150/350 (Typ.)(Tr/Td) ms | |
| Best View on | 6 o'clock | 6 o'clock | 6 o'clock | |
| Work Mode | STN, Black/White (Negative), Transmissive | STN, Black/White (Positive), Transflective | STN, Black/White (Positive), Transflective | |
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | Monochrome | Monochrome | Monochrome | Monochrome |
| Backlight | 1S6P WLED , Without Driver | WLED [1S6P] , W/O Driver | 1S6P WLED , No Driver | |
| Mass | - | - | - | - |
| Touch Screen | Without | 4-wire Resistive Touch | Without | |
| Refresh Rate | 75Hz | 75Hz | 75Hz | 75Hz |
| Driver IC list | ||||
| Signal Type | Parallel Data (1ch, 4-bit) , 20 pins FPC | Parallel Data (1ch, 4-bit) 20 pins FPC | Parallel Data (1ch, 4-bit) , 20 pins FPC | Parallel Data (1ch, 4-bit) , 20 pins FPC |
