Rohm Semiconductor SIM-22ST
- Part No.:
- SIM-22ST
- Manufacturer:
- Rohm Semiconductor
- Category:
- LED Emitters - Infrared, UV, Visible
- Package:
- Radial
- Description:
- GAAS INFRARED LIGHT EMITTING DIO
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SIM-22ST Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Rohm Semiconductor
- Series:
- -
- Package/Case:
- Radial
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Type:
- Infrared (IR)
- Current - DC Forward (If) (Max):
- 50mA
- Radiant Intensity (Ie) Min @ If:
- 0.8mW/sr @ 10mA
- Wavelength:
- 950nm
- Voltage - Forward (Vf) (Typ):
- 1.3V
- Viewing Angle:
- 60°
- Orientation:
- Side View
- Operating Temperature:
- -25°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
| Image |  |
 |
 |
 |
 |

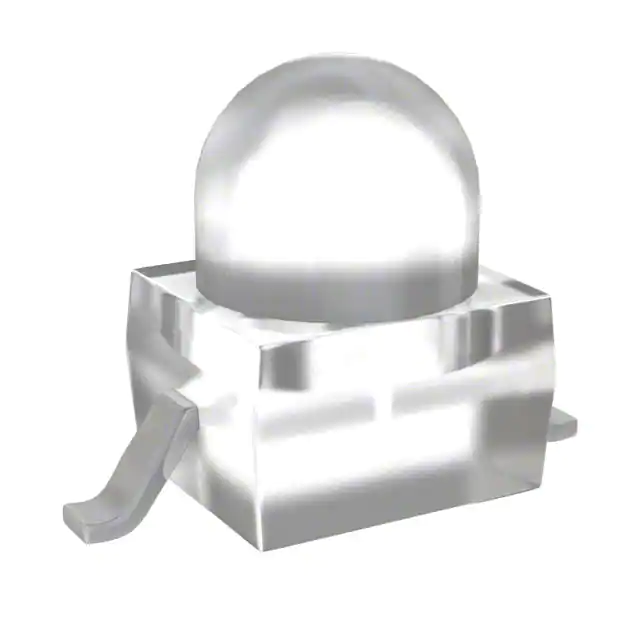

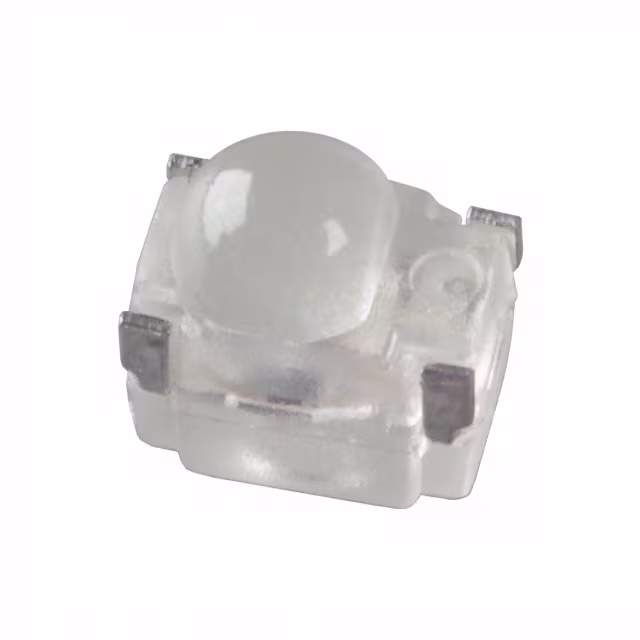

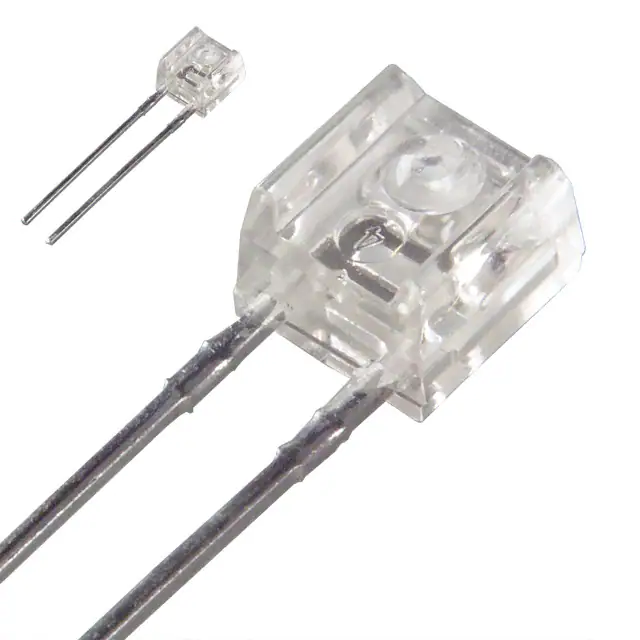

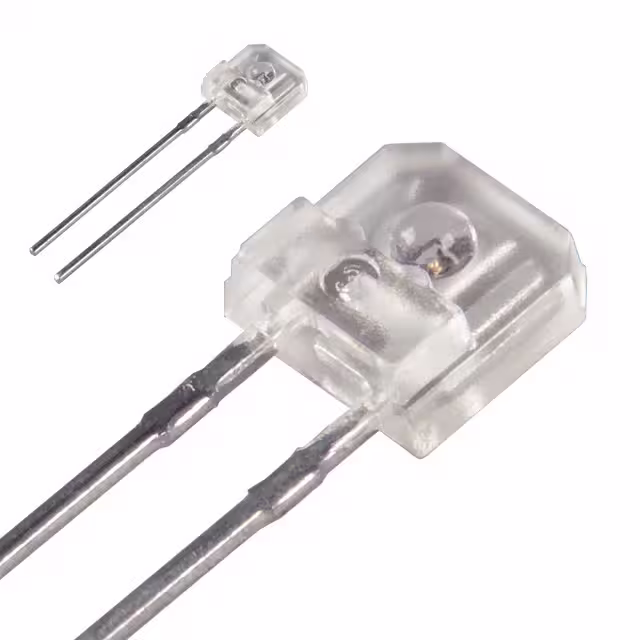

| Part Number | SIM-040ST | SIM-012SBT87 | SIM-012STT87 | SIM-20ST | SIM-22STF |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Series | - | - | - | - | - |
| Package/Case | 2-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | Radial | Radial |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA | 40mA | 40mA | 50mA | 50mA |
| Radiant Intensity (Ie) Min @ If | 20mW/sr @ 100mA | 0.9mW/sr @ 20mA | 0.9mW/sr @ 20mA | 7.5mW/sr @ 50mA | 0.8mW/sr @ 10mA |
| Wavelength | 870nm | 950nm | 950nm | 950nm | 950nm |
| Voltage - Forward (Vf) (Typ) | 1.7V | 1.2V | 1.2V | 1.3V | 1.3V |
| Viewing Angle | 40° | 24° | 24° | 30° | 60° |
| Orientation | Top View | Side View | Side View | Side View | Side View |
| Operating Temperature | -25°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole | Through Hole |
