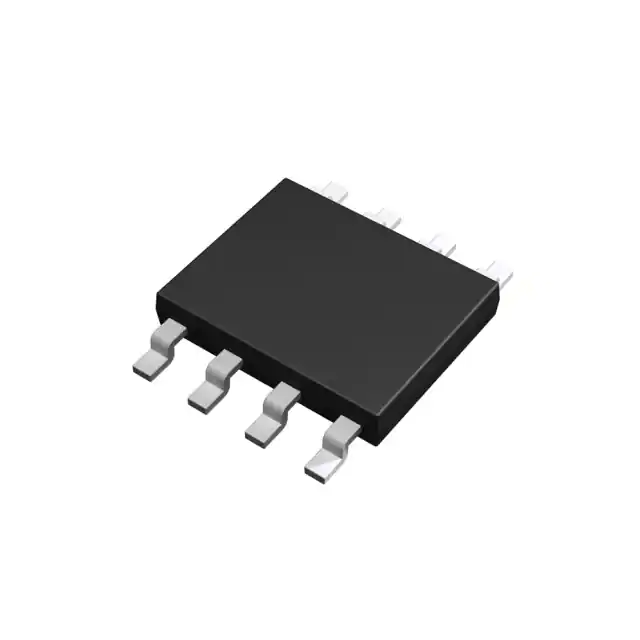

Rohm Semiconductor RS3E075ATTB

Product attributes

Attribute value

Manufacturer:

Rohm Semiconductor

Series:

-

Package/Case:

8-SOIC (0.154", 3.90mm Width)

Packaging:

Tape & Reel (TR)

Product Status:

Not For New Designs

FET Type:

P-Channel

Technology:

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):

30 V

Current - Continuous Drain (Id) @ 25°C:

-

Drive Voltage (Max Rds On, Min Rds On):

4.5V, 10V

Rds On (Max) @ Id, Vgs:

23.5mOhm @ 7.5A, 10V

Vgs(th) (Max) @ Id:

2.5V @ 1mA

Gate Charge (Qg) (Max) @ Vgs:

25 nC @ 10 V

Vgs (Max):

±20V

Input Capacitance (Ciss) (Max) @ Vds:

1250 pF @ 15 V

FET Feature:

-

Power Dissipation (Max):

2W (Ta)

Operating Temperature:

150°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Surface Mount

Supplier Device Package:

8-SOP-J
