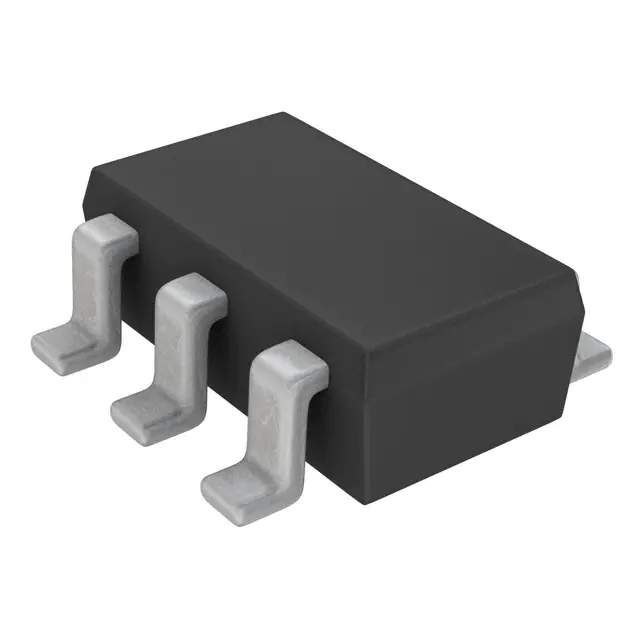

Rohm Semiconductor RTQ035N03HZGTR

Product attributes

Attribute value

Manufacturer:

Rohm Semiconductor

Series:

-

Package/Case:

SOT-23-6 Thin, TSOT-23-6

Packaging:

Tape & Reel (TR)

Product Status:

Active

FET Type:

N-Channel

Technology:

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):

30 V

Current - Continuous Drain (Id) @ 25°C:

3.5A (Ta)

Drive Voltage (Max Rds On, Min Rds On):

2.5V, 4.5V

Rds On (Max) @ Id, Vgs:

54mOhm @ 3.5A, 4.5V

Vgs(th) (Max) @ Id:

1.5V @ 1mA

Gate Charge (Qg) (Max) @ Vgs:

6.4 nC @ 4.5 V

Vgs (Max):

±12V

Input Capacitance (Ciss) (Max) @ Vds:

285 pF @ 10 V

FET Feature:

-

Power Dissipation (Max):

950mW (Ta)

Operating Temperature:

150°C (TJ)

Grade:

Automotive

Qualification:

AEC-Q101

Mounting Type:

Surface Mount

Supplier Device Package:

TSMT6 (SC-95)
