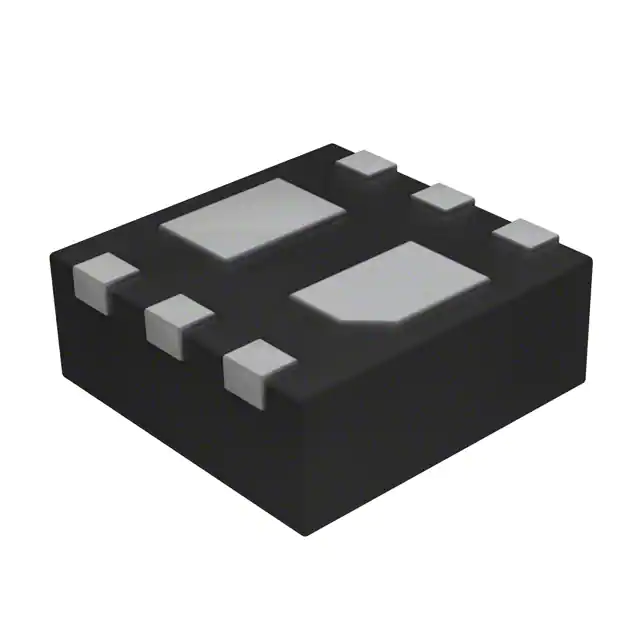

STMicroelectronics STL6N2VH5

Product attributes

Attribute value

Manufacturer:

STMicroelectronics

Series:

STripFET™ V

Package/Case:

6-PowerWDFN

Packaging:

Tape & Reel (TR)

Product Status:

Active

FET Type:

N-Channel

Technology:

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):

20 V

Current - Continuous Drain (Id) @ 25°C:

6A (Tj)

Drive Voltage (Max Rds On, Min Rds On):

2.5V, 4.5V

Rds On (Max) @ Id, Vgs:

30mOhm @ 3A, 4.5V

Vgs(th) (Max) @ Id:

700mV @ 250µA (Min)

Gate Charge (Qg) (Max) @ Vgs:

6 nC @ 4.5 V

Vgs (Max):

±8V

Input Capacitance (Ciss) (Max) @ Vds:

550 pF @ 16 V

FET Feature:

-

Power Dissipation (Max):

2.4W (Tc)

Operating Temperature:

-55°C ~ 150°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Surface Mount

Supplier Device Package:

PowerFlat™ (2x2)
