ams-OSRAM USA INC. LZP-00UB0R-00U5
- Part No.:
- LZP-00UB0R-00U5
- Manufacturer:
- ams-OSRAM USA INC.
- Category:
- LED Emitters - Infrared, UV, Visible
- Package:
- 24-SMD, No Lead Exposed Pad
- Datasheet:
-
LZP-00UB0R-00U5.pdf
- Description:
- LED EMITTER UV VIOLET SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LZP-00UB0R-00U5 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ams-OSRAM USA INC.
- Series:
- LuxiGen™ LZP
- Package/Case:
- 24-SMD, No Lead Exposed Pad
- Packaging:
- Tray
- Product Status:
- Active
- Type:
- Ultraviolet (UV)
- Current - DC Forward (If) (Max):
- 600mA
- Radiant Intensity (Ie) Min @ If:
- -
- Wavelength:
- 393nm (390nm ~ 395nm)
- Voltage - Forward (Vf) (Typ):
- 20.9V
- Viewing Angle:
- 115°
- Orientation:
- Top View
- Operating Temperature:
- 60°C (TC)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
| Image |  |
 |
|
 |
|

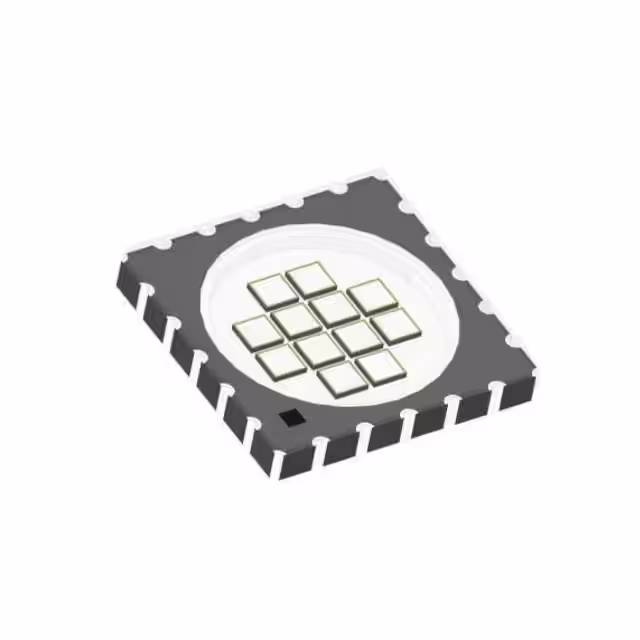

| Part Number | LZP-04UB0R-00U8 | LZP-04UB0R-00U5 | LZP-04UB0R-00U4 | LZP-D4UB0R-00U8 | LZP-D4UB0R-00U5 |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Series | LuxiGen™ LZP | LuxiGen™ LZP | LuxiGen™ LZP | LuxiGen™ LZP | LuxiGen™ LZP |
| Package/Case | 24-SMD, No Lead Exposed Pad | 24-SMD, No Lead Exposed Pad | 24-SMD, No Lead Exposed Pad | 24-SMD, No Lead Exposed Pad | 24-SMD, No Lead Exposed Pad |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Ultraviolet (UV) | Ultraviolet (UV) | Ultraviolet (UV) | Ultraviolet (UV) | Ultraviolet (UV) |
| Current - DC Forward (If) (Max) | 1A | 1A | 1A | 1A | 1A |
| Radiant Intensity (Ie) Min @ If | - | - | - | - | - |
| Wavelength | 405nm ~ 410nm | 390nm ~ 395nm | 385nm ~ 390nm | 405nm ~ 410nm | 390nm ~ 395nm |
| Voltage - Forward (Vf) (Typ) | 21V | 21V | 21V | 21V | 21V |
| Viewing Angle | 117° | 117° | 117° | 117° | 117° |
| Orientation | Top View | Top View | Top View | Top View | Top View |
| Operating Temperature | 130°C (TJ) | 130°C (TJ) | 130°C (TJ) | 130°C (TJ) | 130°C (TJ) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
