Sharp LM8V30
- Part No.:
- LM8V30
- Manufacturer:
- Sharp
- Category:
- STN Graphic Display
- Package:
- Description:
- Sharp 7.7" 640×480 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 29pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
LM8V30 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sharp
- Panel Size:
- 7.7"
- Panel Type:
- CSTN-LCD
- Resolution:
- 640×480
- Viewing Area:
- 161.4×122.1
- Outline Size:
- 197(W)×142.5(H) ×8(D) mm
- Treatment:
- Brightness:
- 70 cd/m² (Typ.)
- Contrast Ratio:
- View Direction:
- Viewing Angle:
- 30/30/15/25 (Typ.)(CR≥5) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- -
- Work Mode:
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Color
- Backlight:
- Mass:
- 240g
- Touch Screen:
- Refresh Rate:
- 75Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 8-bit) , 29 pins Connector
| Image |  |
 |
 |
 |
 |

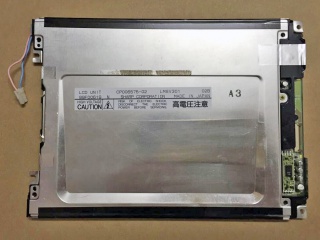

| Part Number | LM8V302 | LM8V30 | LM8V302R | LM8V301 | LM8V302D |
| Manufacturer | Sharp | Sharp | Sharp | Sharp | Sharp |
| Panel Size | 7.7" | 7.7" | 7.7" | 7.7" | 7.7" |
| Panel Type | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD |
| Resolution | 640×480 | 640×480 | 640×480 | 640×480 | 640×480 |
| Viewing Area | 161.4×122.1 | 161.4×122.1 | 163.4×124.1 | ||
| Outline Size | 197(W)×142.5(H)×8(D) mm | 197(W)×142.5(H) ×8(D) mm | 197(W)×142.5(H) mm | 199(H)×147(V)×10.5(D) mm | |
| Treatment | - | Glare (Haze 0%) | |||
| Brightness | 120 cd/m² (Typ.) | 70 cd/m² (Typ.) | 200 cd/m² (Typ.) | ||
| Contrast Ratio | 25:1 (Typ.) (TM) | ||||
| View Direction | - | - | |||
| Viewing Angle | 50/50/50/30 (Typ.)(CR≥2) (Left / Right / Up / Down) | 30/30/15/25 (Typ.)(CR≥5) (Left / Right / Up / Down) | - | - | - |
| Response Time | - | - | 160/140 (Typ.)(Tr/Td) | ||
| Best View on | - | - | - | ||
| Work Mode | STN, Normally Black, Transmissive | STN, Normally Black | STN, Normally Black, Transmissive | ||
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | Color | Color | Color | Color | Color 40% NTSC |
| Backlight | CCFL [1 pcs] | 1 pcs CCFL | CCFL [2 pcs] , 40K hours , W/O Driver | ||
| Mass | 240g (Typ.) | 240g | - | - | 330g |
| Touch Screen | Without | ||||
| Refresh Rate | 120Hz | 75Hz | - | ||
| Driver IC list | |||||
| Signal Type | Parallel Data (1ch, 8-bit) , 29 pins Connector | Parallel Data (1ch, 8-bit) , 29 pins Connector | Parallel Data (1ch, 8-bit) Connector | Parallel Data Connector | Parallel Data (2ch, 8-bit) , 29 pins Connector |
