Sharp LM32018T
- Part No.:
- LM32018T
- Manufacturer:
- Sharp
- Category:
- STN Graphic Display
- Package:
- Description:
- Sharp 4.7" 320×240 STN-LCD Blue mode (Negative) Transmissive CCFL Parallel Data 12pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
LM32018T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sharp
- Panel Size:
- 4.7"
- Panel Type:
- STN-LCD
- Resolution:
- 320×240
- Viewing Area:
- 100.0×75.0
- Outline Size:
- 145(H)×93(V) ×7.5(D) mm
- Treatment:
- -
- Brightness:
- 150 cd/m² (Typ.)
- Contrast Ratio:
- 6:1 (Typ.) (TM)
- View Direction:
- -
- Viewing Angle:
- 25/25/15/25 (Typ.)(CR≥4) (Left / Right / Up / Down)
- Response Time:
- 220/215 (Typ.)(Tr/Td)
- Best View on:
- Work Mode:
- STN, Blue mode (Negative), Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Monochrome
- Backlight:
- CCFL [1 pcs] , W/O Driver
- Mass:
- 115g
- Touch Screen:
- Without
- Refresh Rate:
- -
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 8-bit) , 12 pins Connector
| Image |  |
 |

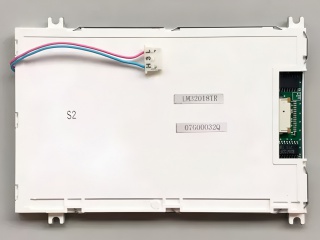

| Part Number | LM32018T | LM32018TR |
| Manufacturer | Sharp | Sharp |
| Panel Size | 4.7" | 4.7" |
| Panel Type | STN-LCD | FSTN-LCD |
| Resolution | 320×240 | 320×240 |
| Viewing Area | 100.0×75.0 | 100.0×75.0 |
| Outline Size | 145(H)×93(V) ×7.5(D) mm | 145(W)×93(H) mm |
| Treatment | - | - |
| Brightness | 150 cd/m² (Typ.) | 150 cd/m² (Typ.) |
| Contrast Ratio | 6:1 (Typ.) (TM) | 6:1 (Typ.) (TM) |
| View Direction | - | |
| Viewing Angle | 25/25/15/25 (Typ.)(CR≥4) (Left / Right / Up / Down) | 25/25/15/25 (Typ.)(CR≥4) (Left / Right / Up / Down) |
| Response Time | 220/215 (Typ.)(Tr/Td) | 220/215 (Typ.)(Tr/Td) |
| Best View on | - | |
| Work Mode | STN, Blue mode (Negative), Transmissive | STN, Black/White mode, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | Monochrome | Monochrome |
| Backlight | CCFL [1 pcs] , W/O Driver | 1 pcs CCFL , Without Driver |
| Mass | 115g | - |
| Touch Screen | Without | Without |
| Refresh Rate | - | - |
| Driver IC list | ||
| Signal Type | Parallel Data (1ch, 8-bit) , 12 pins Connector | Parallel Data (1ch, 8-bit) Connector |
