Sharp LM100SS1T52
- Part No.:
- LM100SS1T52
- Manufacturer:
- Sharp
- Category:
- STN Graphic Display
- Package:
- Description:
- SHARP 10.0" 800×600 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 31pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
LM100SS1T52 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sharp
- Panel Size:
- 10"
- Panel Type:
- CSTN-LCD
- Resolution:
- 800×600
- Viewing Area:
- 208.0×157.0
- Outline Size:
- 236.8(W)×172.5(H) ×6.8(D) mm
- Treatment:
- -
- Brightness:
- 70 cd/m² (Typ.)
- Contrast Ratio:
- 50:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 30/30/25/15 (Typ.)(CR≥5) (Left / Right / Up / Down)
- Response Time:
- 220/80 (Typ.)(Tr/Td)
- Best View on:
- -
- Work Mode:
- STN, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Color
- Backlight:
- 1 pcs CCFL , 10K hours , Without Driver
- Mass:
- 340g (Typ.)
- Touch Screen:
- Without
- Refresh Rate:
- 100Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 8-bit) , 31 pins Connector
| Image |  |
 |
 |

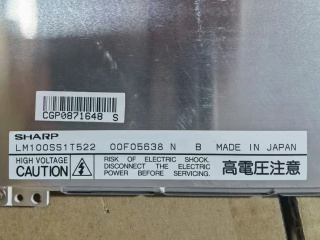

| Part Number | LM100SS1T52 | LM100SS1T522 | LM100SS1T523 |
| Manufacturer | Sharp | Sharp | Sharp |
| Panel Size | 10" | 10" | 10" |
| Panel Type | CSTN-LCD | CSTN-LCD | CSTN-LCD |
| Resolution | 800×600 | 800×600 | 800×600 |
| Viewing Area | 208.0×157.0 | 207.0×156.0 | 208.0×157.0 |
| Outline Size | 236.8(W)×172.5(H) ×6.8(D) mm | 236.8(W)×172.5(H)×6.8(D) mm | 236.8(W)×172.5(H)×6.8(D) mm |
| Treatment | - | Antiglare, Hard coating (3H) | - |
| Brightness | 70 cd/m² (Typ.) | 100 cd/m² (Typ.) | 100 cd/m² (Typ.) |
| Contrast Ratio | 50:1 (Typ.) (TM) | 50:1 (Typ.) (TM) | 50:1 (Typ.) (TM) |
| View Direction | - | - | |
| Viewing Angle | 30/30/25/15 (Typ.)(CR≥5) (Left / Right / Up / Down) | 30/30/15/25 (Typ.)(CR≥5) (Left / Right / Up / Down) | 30/30/25/15 (Typ.)(CR≥5) |
| Response Time | 220/80 (Typ.)(Tr/Td) | 220/80 (Typ.)(Tr/Td) | 220/80 (Typ.)(Tr/Td) |
| Best View on | - | ||
| Work Mode | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | Color | Color | Color |
| Backlight | 1 pcs CCFL , 10K hours , Without Driver | CCFL [1 pcs] , 25K hours , W/O Driver | CCFL [1 pcs] , 25K hours , W/O Driver |
| Mass | 340g (Typ.) | 340g | 340g (Typ.) |
| Touch Screen | Without | Without | Without |
| Refresh Rate | 100Hz | 120Hz | 120Hz |
| Driver IC list | |||
| Signal Type | Parallel Data (1ch, 8-bit) , 31 pins Connector | Parallel Data (1ch, 8-bit) , 31 pins Connector | Parallel Data (1ch, 8-bit) 30 pins Connector |
