Kyocera Display KG057QVLCD-G000
- Part No.:
- KG057QVLCD-G000
- Manufacturer:
- Kyocera Display
- Category:
- STN Graphic Display
- Package:
- Description:
- Kyocera Display 5.7" 320×240 FSTN-LCD Black/White (Negative) Transmissive WLED Parallel Data 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
KG057QVLCD-G000 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kyocera Display
- Panel Size:
- 5.7"
- Panel Type:
- FSTN-LCD
- Resolution:
- 320×240
- Viewing Area:
- 119.4×90.6
- Outline Size:
- 144 × 104.8 × 13.2 (H×V×D)
- Treatment:
- Glare (Haze 0%)
- Brightness:
- 300 cd/m² (Typ.)
- Contrast Ratio:
- 10 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 45/45/20/40 (Typ.)(CR≥2) (Left / Right / Up / Down)
- Response Time:
- 380/120 (Typ.)(Tr/Td) ms
- Best View on:
- -
- Work Mode:
- STN, Black/White (Negative), Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Monochrome
- Backlight:
- WLED , 50K hours , No Driver
- Mass:
- 175g (Typ.)
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 4-bit) , 20 pins Connector
| Image |  |
 |
|
 |
 |

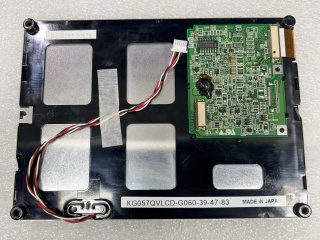

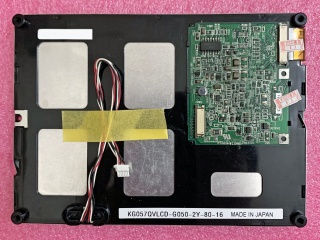

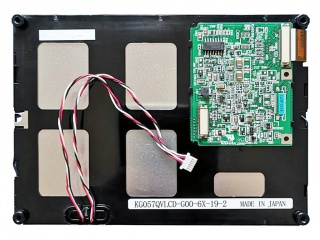

| Part Number | KG057QVLCD-G000 | KG057QVLCD-G030 | KG057QVLCD-G020 | KG057QVLCD-G050 | KG057QVLCD-G060 |
| Manufacturer | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display |
| Panel Size | 5.7" | 5.7" | 5.7" | 5.7" | 5.7" |
| Panel Type | FSTN-LCD | FSTN-LCD | STN-LCD | FSTN-LCD | FSTN-LCD |
| Resolution | 320×240 | 320×240 | 320×240 | 320×240 | 320×240 |
| Viewing Area | 119.4×90.6 | 119.4×90.6 | 119.4×90.6 | 119.4×90.6 | 119.4×90.6 |
| Outline Size | 144 × 104.8 × 13.2 (H×V×D) | 144(H)×104.8(V) ×13.2(D) mm | 144(W)×104.8(H)×13.2(D) | 144(W)×104.8(H) ×13.2(D) mm | 144(W)×104.8(H) ×13.2(D) mm |
| Treatment | Glare (Haze 0%) | Glare (Haze 0%) | Glare (Haze 0%) | Glare (Haze 0%) | |
| Brightness | 300 cd/m² (Typ.) | - | 350 (Typ.)(cd/m²) | 300 cd/m² (Typ.) | 150 cd/m² (Typ.) |
| Contrast Ratio | 10 : 1 (Typ.) (TM) | 4 : 1 (Typ.) (TM) | 40:1 (Typ.) (TM) | 3:1 (Typ.) (TM) 4:1 (Typ.) (RF) | |
| View Direction | - | ||||
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥2) (Left / Right / Up / Down) | - | 45/45/20/40 (Typ.)(CR≥2) | 45/45/25/45 (Typ.)(CR≥2) (Left / Right / Up / Down) | 35/35/20/35 (Typ.)(CR≥2) (Left / Right / Up / Down) |
| Response Time | 380/120 (Typ.)(Tr/Td) ms | 380/120 (Typ.)(Tr/Td) ms | 380/120 (Typ.)(Tr/Td) | 380/120 (Typ.)(Tr/Td) | |
| Best View on | - | - | - | - | |
| Work Mode | STN, Black/White (Negative), Transmissive | STN, Blue mode (Negative), Transmissive | STN, Black/White (Negative), Transmissive | STN, Black/White (Negative), Transflective | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | Monochrome | Monochrome | Monochrome | Monochrome | Monochrome |
| Backlight | WLED , 50K hours , No Driver | WLED , 50K hours , No Driver | WLED , 50K hours , Without Driver | WLED , 50K hours , Without Driver | |
| Mass | 175g (Typ.) | TBD | 175g (Typ.) | 175g (Typ.) | 175g (Typ.) |
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 75Hz | - | 75Hz | 75Hz | 75Hz |
| Driver IC list | |||||
| Signal Type | Parallel Data (1ch, 4-bit) , 20 pins Connector | Parallel Data (1ch, 4-bit) Connector | Parallel Data (1ch, 4-bit) , 20 pins Connector | Parallel Data (1ch, 4-bit) , 20 pins Connector | Parallel Data (1ch, 4-bit) , 20 pins Connector |
- Include Parts
- Popular Search
The following parts include "KG057QVLCD-G000" in Silicon Labs KG057QVLCD-G000.
- Part Number
- Manufacturer
- Package
- Description
- SP12Q01L6ALZZ KOE KOE 4.7" 320×240 FSTN-LCD Black/White mode Transmissive WLED Parallel Data 12pins
- KCG057QV1DB-G760 Kyocera Display Kyocera Display 5.7" 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 20pins
- KG057QV1CA-G00 Kyocera Display Kyocera Display 5.7" 320×240 FSTN-LCD Black/White (Negative) Transmissive CCFL Parallel Data 20pins
- SP14N02L6ALCZ KOE KOE 5.1" 240×128 FSTN-LCD Black/White (Negative) Transmissive WLED LC7981 CPU 20pins
- LMG7420PLFC-X KOE KOE 5.1" 240×128 FSTN-LCD Black/White (Negative) Transmissive CCFL T6963C CPU 20pins
- LMG5278XUFC-00T KOE KOE 9.4" 640×480 FSTN-LCD Black/White (Negative) Transmissive CCFL Parallel Data 15pins
- LM8V302 Sharp Sharp 7.7" 640×480 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 29pins
- SP12N002 KOE KOE 4.8" 256×64 FSTN-LCD Black/White mode Transmissive CCFL T6963C CPU 20pins
- SP14Q006 KOE KOE 5.7" 320×240 FSTN-LCD Black/White mode Transmissive WLED Parallel Data 14pins
- KCG057QV1DB-G50 Kyocera Display Kyocera Display 5.7" 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 20pins
