Kyocera Display KCS077VG2EA-G43
- Part No.:
- KCS077VG2EA-G43
- Manufacturer:
- Kyocera Display
- Category:
- STN Graphic Display
- Package:
- Description:
- Kyocera Display 7.7" 640×480 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 29pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
KCS077VG2EA-G43 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kyocera Display
- Panel Size:
- 7.7"
- Panel Type:
- CSTN-LCD
- Resolution:
- 640×480
- Viewing Area:
- 160.42×121.06
- Outline Size:
- 199(W)×147(H) ×10.5(D) mm
- Treatment:
- Brightness:
- 200 cd/m² (Typ.)
- Contrast Ratio:
- View Direction:
- Viewing Angle:
- -
- Response Time:
- Best View on:
- -
- Work Mode:
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Color 40% NTSC
- Backlight:
- Mass:
- 330g
- Touch Screen:
- Refresh Rate:
- 75Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 8-bit) , 29 pins Connector

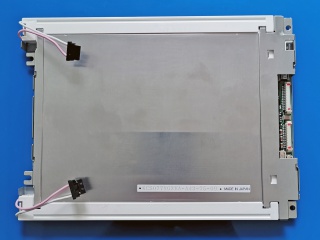

| Image |  |
|
|
 |
|
| Part Number | KCS077VG2EA-G43 | KCS077VG2EA-A46 | KCS077VG2EA-A03 | KCS077VG2EA-A43 | KCS077VG2EA-A01 |
| Manufacturer | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display |
| Panel Size | 7.7" | 7.7" | 7.7" | 7.7" | 7.7" |
| Panel Type | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD |
| Resolution | 640×480 | 640×480 | 640×480 | 640×480 | 640×480 |
| Viewing Area | 160.42×121.06 | 160.42×121.06 | 160.42×121.06 | 160.42×121.06 | |
| Outline Size | 199(W)×147(H) ×10.5(D) mm | 199(W)×147(H) ×10.5(D) mm | 199(W)×147(H) ×10.5(D) mm | ||
| Treatment | Antiglare | - | |||
| Brightness | 200 cd/m² (Typ.) | 150 cd/m² (Typ.) | 200 cd/m² (Typ.) | ||
| Contrast Ratio | 20:1 (Typ.) (TM) | 25:1 (Typ.) (TM) | |||
| View Direction | - | ||||
| Viewing Angle | - | - | 50/50/40/30 (Typ.)(CR≥2) | - | - |
| Response Time | - | 160/80 (Typ.)(Tr/Td) | 300 (Typ.)(Tr+Td) | - | |
| Best View on | - | - | - | - | |
| Work Mode | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | Color 40% NTSC | Color | Color 42% NTSC | Color | Color |
| Backlight | 2 pcs CCFL | 2 pcs CCFL , 25K hours , Optional | 2 pcs CCFL , 40K hours | CCFL | |
| Mass | 330g | - | 330g | 330g | - |
| Touch Screen | Without | Without | Without | ||
| Refresh Rate | 75Hz | - | 75Hz | 75Hz | |
| Driver IC list | |||||
| Signal Type | Parallel Data (1ch, 8-bit) , 29 pins Connector | Parallel Data (1ch, 8-bit) , 29 pins Connector | Parallel Data (1ch, 8-bit) , 29 pins Connector | Parallel Data (1ch, 8-bit) , 29 pins Connector | Parallel Data (1ch, 8-bit) Connector |
