Kyocera Display KCS072VG1MB-G42
- Part No.:
- KCS072VG1MB-G42
- Manufacturer:
- Kyocera Display
- Category:
- STN Graphic Display
- Package:
- Description:
- Kyocera Display 7.2" 640×480 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 31pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
KCS072VG1MB-G42 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kyocera Display
- Panel Size:
- 7.2"
- Panel Type:
- CSTN-LCD
- Resolution:
- 640×480
- Viewing Area:
- 147.90×111.42
- Outline Size:
- 179.3(W)×130.5(H) ×6.5(D) mm
- Treatment:
- -
- Brightness:
- Contrast Ratio:
- View Direction:
- Viewing Angle:
- -
- Response Time:
- 220/110 (Typ.)(Tr/Td)
- Best View on:
- -
- Work Mode:
- STN, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Color
- Backlight:
- 1 pcs CCFL , Optional
- Mass:
- 170g (Typ.)
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 8-bit) , 31 pins Connector
| Image |  |
 |
 |
|
|

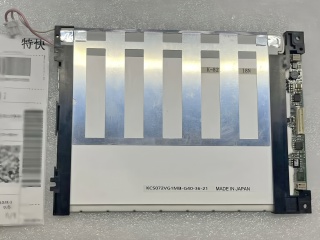

| Part Number | KCS072VG1MB-G42 | KCS072VG1MB-G40 | KCS072VG1MB-G02 | KCS072VG1MB-A44 | KCS072VG1MB-G60 |
| Manufacturer | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display |
| Panel Size | 7.2" | 7.2" | 7.2" | 7.2" | 7.2" |
| Panel Type | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD |
| Resolution | 640×480 | 640×480 | 640×480 | 640×480 | 640×480 |
| Viewing Area | 147.90×111.42 | 147.90×111.42 | 147.90×111.42 | 147.90×111.42 | |
| Outline Size | 179.3(W)×130.5(H) ×6.5(D) mm | 179.3 × 130.5 × 6.5 (H×V×D) | 179.3(W)×130.5(H) ×6.9(D) mm | 179.3×130.5×6.5 (H×V×D) | |
| Treatment | - | Glare (Haze 0%) | Antiglare | Glare (Haze 0%) | |
| Brightness | 100 cd/m² (Typ.) | 100 cd/m² (Typ.) | 70 cd/m² (Typ.) | ||
| Contrast Ratio | 30 : 1 (Typ.) (TM) | 30:1 (Typ.) (TM) | 30 : 1 (Typ.) (TM) | ||
| View Direction | - | ||||
| Viewing Angle | - | 45/50/35/20 (Typ.)(CR≥2) (Left / Right / Up / Down) | - | 50/50/60/45 (Typ.)(CR≥2) (Left / Right / Up / Down) | 45/50/35/20 (Typ.)(CR≥2) (Left / Right / Up / Down) |
| Response Time | 220/110 (Typ.)(Tr/Td) | 220/110 (Typ.)(Tr/Td) ms | - | 220/110 (Typ.)(Tr/Td) | 180/170 (Typ.)(Tr/Td) ms |
| Best View on | - | - | - | - | |
| Work Mode | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | Color | Color 40% NTSC | Color | Color 40% NTSC | Color 40% NTSC |
| Backlight | 1 pcs CCFL , Optional | 1 pcs CCFL , 20K hours , Optional | CCFL [1 pcs] | 1 pcs CCFL , 20K hours , Optional | 1 pcs CCFL , 10K hours , Optional |
| Mass | 170g (Typ.) | 170g (Typ.) | - | 170g (Typ.) | 170g (Typ.) |
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 75Hz | 75Hz | 75Hz | 75Hz | |
| Driver IC list | |||||
| Signal Type | Parallel Data (1ch, 8-bit) , 31 pins Connector | Parallel Data (1ch, 8-bit) , 31 pins Connector | Parallel Data (1ch, 8-bit) Connector | Parallel Data (1ch, 8-bit) , 31 pins Connector | Parallel Data (1ch, 8-bit) , Connector 31 pins |
