Kyocera Display KCS057QV1AJ-G23
- Part No.:
- KCS057QV1AJ-G23
- Manufacturer:
- Kyocera Display
- Category:
- STN Graphic Display
- Package:
- Description:
- Kyocera Display 5.7" 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 15pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
KCS057QV1AJ-G23 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kyocera Display
- Panel Size:
- 5.7"
- Panel Type:
- CSTN-LCD
- Resolution:
- 320×240
- Viewing Area:
- 120.0×91.4
- Outline Size:
- 154.6(W)×114.8(H) ×9(D) mm
- Treatment:
- Glare (Haze 0%)
- Brightness:
- 200 cd/m² (Typ.)
- Contrast Ratio:
- 40:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 50/50/30/30 (Typ.)(CR≥2) (Left / Right / Up / Down)
- Response Time:
- 220/110 (Typ.)(Tr/Td)
- Best View on:
- -
- Work Mode:
- STN, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Color 35% NTSC
- Backlight:
- 1 pcs CCFL , 40K hours , Optional
- Mass:
- 200g (Typ.)
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 8-bit) , 15 pins Connector
| Image |  |
 |
 |
 |
 |

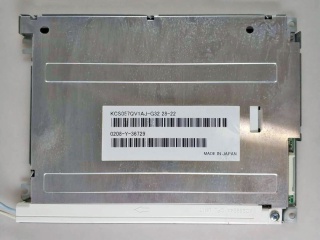

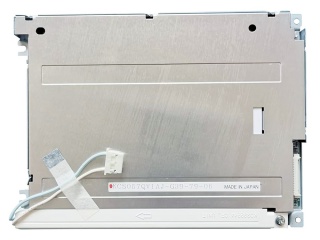

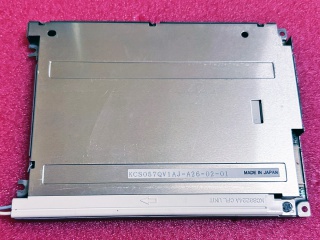

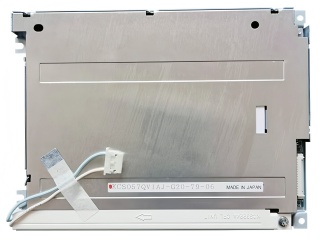

| Part Number | KCS057QV1AJ-G23 | KCS057QV1AJ-G20 | KCS057QV1AJ-G32 | KCS057QV1AJ-G39 | KCS057QV1AJ-A26 |
| Manufacturer | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display |
| Panel Size | 5.7" | 5.7" | 5.7" | 5.7" | 5.7" |
| Panel Type | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD |
| Resolution | 320×240 | 320×240 | 320×240 | 320×240 | 320×240 |
| Viewing Area | 120.0×91.4 | 120.2×91.4 | 121.4×92.62 | ||
| Outline Size | 154.6(W)×114.8(H) ×9(D) mm | 154.6(W)×114.8(H)×9(D) mm | 154.6(W)×114.8(H)×9(D) mm | ||
| Treatment | Glare (Haze 0%) | Glare (Haze 0%) | Glare (Haze 0%) | ||
| Brightness | 200 cd/m² (Typ.) | 200 cd/m² (Typ.) | 200 cd/m² (Typ.) | ||
| Contrast Ratio | 40:1 (Typ.) (TM) | 40:1 (Typ.) (TM) | 40:1 (Typ.) (TM) | ||
| View Direction | - | - | - | - | |
| Viewing Angle | 50/50/30/30 (Typ.)(CR≥2) (Left / Right / Up / Down) | 50/50/30/30 (Typ.)(CR≥2) (Left / Right / Up / Down) | 50/50/40/50 (Typ.)(CR≥2) (Left / Right / Up / Down) | - | - |
| Response Time | 220/110 (Typ.)(Tr/Td) | 220/110 (Typ.)(Tr/Td) | 220/110 (Typ.)(Tr/Td) | - | - |
| Best View on | - | ||||
| Work Mode | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black | STN, Normally Black |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | Color 35% NTSC | Color | Color 35% NTSC | Color | Color |
| Backlight | 1 pcs CCFL , 40K hours , Optional | CCFL [1 pcs] , 40K hours , Optional | CCFL [1 pcs] , 40K hours , Optional | CCFL [1 pcs] | CCFL [1 pcs] |
| Mass | 200g (Typ.) | 200g (Typ.) | 200g (Typ.) | - | - |
| Touch Screen | Without | Without | Without | ||
| Refresh Rate | 75Hz | 75Hz | 75Hz | ||
| Driver IC list | |||||
| Signal Type | Parallel Data (1ch, 8-bit) , 15 pins Connector | Parallel Data (1ch, 8-bit) , 15 pins Connector | Parallel Data (1ch, 8-bit) , 15 pins Connector | Parallel Data (1ch, 8-bit) Connector | Parallel Data (1ch, 8-bit) Connector |
