Kyocera Display KCG057QV1DB-G00
- Part No.:
- KCG057QV1DB-G00
- Manufacturer:
- Kyocera Display
- Category:
- STN Graphic Display
- Package:
- Description:
- Kyocera Display 5.7" 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
KCG057QV1DB-G00 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kyocera Display
- Panel Size:
- 5.7"
- Panel Type:
- CSTN-LCD
- Resolution:
- 320×240
- Viewing Area:
- 119.4×90.6
- Outline Size:
- 144(W)×104.8(H) ×13.2(D) mm
- Treatment:
- Glare (Haze 0%)
- Brightness:
- 160 cd/m² (Typ.)
- Contrast Ratio:
- 55:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 50/50/20/35 (Typ.)(CR≥2) (Left / Right / Up / Down)
- Response Time:
- 190/170 (Typ.)(Tr/Td)
- Best View on:
- 6 o'clock
- Work Mode:
- STN, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Color 39% NTSC
- Backlight:
- 1 pcs CCFL , 54K hours , Optional
- Mass:
- 175g (Typ.)
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 8-bit) , 20 pins Connector
| Image |  |
 |
 |
 |
 |

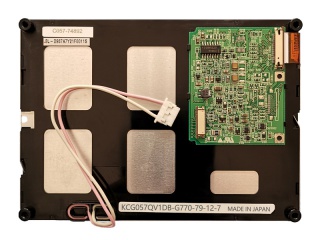

| Part Number | KCG057QV1DB-G760 | KCG057QV1DB-G50 | KCG057QV1DB-G500 | KCG057QV1DB-G00 | KCG057QV1DB-G770 |
| Manufacturer | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display |
| Panel Size | 5.7" | 5.7" | 5.7" | 5.7" | 5.7" |
| Panel Type | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD |
| Resolution | 320×240 | 320×240 | 320×240 | 320×240 | 320×240 |
| Viewing Area | 119.4×90.6 | 119.4×90.6 | 119.4×90.6 | 119.4×90.6 | 117.2×88.4 |
| Outline Size | 144(W)×104.8(H) ×13.2(D) mm | 144(W)×104.8(H) ×13.2(D) mm | 144(W)×104.8(H)×13.2(D) mm | 144(W)×104.8(H) ×13.2(D) mm | 144(W)×104.8(H) ×13.2(D) mm |
| Treatment | Glare (Haze 0%) | Glare (Haze 0%) | Glare (Haze 0%) | - | |
| Brightness | 380 cd/m² (Typ.) | 350 cd/m² (Typ.) | 400 cd/m² (Typ.) | 160 cd/m² (Typ.) | 380 cd/m² (Typ.) |
| Contrast Ratio | 40:1 (Typ.) (TM) | 55:1 (Typ.) (TM) | 55:1 (Typ.) (TM) | 60:1 (Typ.) (TM) | |
| View Direction | - | ||||
| Viewing Angle | 50/50/50/70 (Typ.)(CR≥2) | 50/50/20/35 (Typ.)(CR≥2) (Left / Right / Up / Down) | 50/50/20/35 (Typ.)(CR≥2) | 50/50/20/35 (Typ.)(CR≥2) (Left / Right / Up / Down) | 55/55/60/75 (Typ.)(CR≥2) |
| Response Time | 250/200 (Typ.)(Tr/Td) | 180/170 (Typ.)(Tr/Td) | 190/170 (Typ.)(Tr/Td) | 450 (Typ.)(Tr+Td) | |
| Best View on | - | - | 6 o'clock | - | |
| Work Mode | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | Color 58% NTSC | Color 38% NTSC | Color 38% NTSC | Color 39% NTSC | Color 58% NTSC |
| Backlight | 1 pcs CCFL , 75K hours , Optional | CCFL [1 pcs] , 75K hours , W/O Driver | 1 pcs CCFL , 54K hours , Optional | 1 pcs CCFL , 75K hours , Without Driver | |
| Mass | 175g | 175g | 175g | 175g (Typ.) | 175g (Typ.) |
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 75Hz | 75Hz | 75Hz | 75Hz | 75Hz |
| Driver IC list | |||||
| Signal Type | Parallel Data (1ch, 8-bit) , 20 pins Connector | Parallel Data (1ch, 8-bit) , 20 pins Connector | Parallel Data (1ch, 8-bit) 20 pins Connector | Parallel Data (1ch, 8-bit) , 20 pins Connector | Parallel Data (1ch, 8-bit) , 20 pins Connector |
