Kyocera Display KCG047QV1AA-G02
- Part No.:
- KCG047QV1AA-G02
- Manufacturer:
- Kyocera Display
- Category:
- STN Graphic Display
- Package:
- Description:
- Kyocera Display 4.7" 320×240 CSTN-LCD Normally Black Transmissive CCFL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
KCG047QV1AA-G02 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kyocera Display
- Panel Size:
- 4.7"
- Panel Type:
- CSTN-LCD
- Resolution:
- 320×240
- Viewing Area:
- 100.6×76.6
- Outline Size:
- 122.4(H)×90(V) mm
- Treatment:
- -
- Brightness:
- -
- Contrast Ratio:
- 60:1 (Typ.) (TM)
- View Direction:
- -
- Viewing Angle:
- 110(H);135(V) (Left / Right / Up / Down)
- Response Time:
- -
- Best View on:
- Work Mode:
- STN, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Color
- Backlight:
- CCFL [1 pcs] , 54K hours
- Mass:
- -
- Touch Screen:
- Without
- Refresh Rate:
- -
- Driver IC list:
- Signal Type:
| Image |  |
 |
 |
 |
|

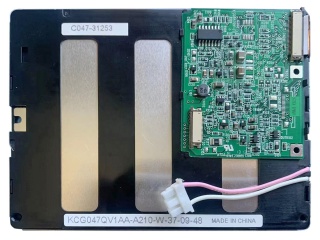

| Part Number | KCG047QV1AA-G02 | KCG047QV1AA-A21 | KCG047QV1AA-A210 | KCG047QV1AA-G70 | KCG047QV1AA-G030 |
| Manufacturer | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display |
| Panel Size | 4.7" | 4.7" | 4.7" | 4.7" | 4.7" |
| Panel Type | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD | CSTN-LCD |
| Resolution | 320×240 | 320×240 | 320×240 | 320×240 | 320×240 |
| Viewing Area | 100.6×76.6 | 100.6×76.6 | 100.6×76.6 | 100.6×76.6 | 100.6×76.6 |
| Outline Size | 122.4(H)×90(V) mm | 122.4(W)×90(H)×11.4(D) mm | 122.4(H)×90(V)×11.4(D) mm | 122.4(W)×90(H) ×11.4(D) mm | 122.4(W)×90(H) |
| Treatment | - | Antiglare | Antiglare | - | |
| Brightness | - | 160 cd/m² (Typ.) | 160 cd/m² (Typ.) | 200 cd/m² (Typ.) | 160 (Typ.)(cd/m²) |
| Contrast Ratio | 60:1 (Typ.) (TM) | 30:1 (Typ.) (TM) | 30:1 (Typ.) (TM) | 60 : 1 (Typ.) (TM) | |
| View Direction | - | - | - | ||
| Viewing Angle | 110(H);135(V) (Left / Right / Up / Down) | 50/50/20/30 (Typ.)(CR≥2) (Left / Right / Up / Down) | 50/50/15/35 (Typ.)(CR≥2) (Left / Right / Up / Down) | 35/35/35/60 (Typ.)(CR≥2) (Left / Right / Up / Down) | 110(H);135(V) |
| Response Time | - | 190/180 (Typ.)(Tr/Td) | 490 (Typ.)(Tr+Td) | - | |
| Best View on | - | - | |||
| Work Mode | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | STN, Normally Black, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | Color | Color 33% NTSC | Color | Color 33% NTSC | Color |
| Backlight | CCFL [1 pcs] , 54K hours | CCFL [1 pcs] , 54K hours , Optional | CCFL [1 pcs] , 54K hours , W/O Driver | 1 pcs CCFL , 54K hours | |
| Mass | - | 120g | 120g | 120g | - |
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | - | 75Hz | 75Hz | 75Hz | - |
| Driver IC list | |||||
| Signal Type | Parallel Data (1ch, 8-bit) , 20 pins Connector | Parallel Data | Parallel Data (1ch, 8-bit) , 20 pins Connector |
- Include Parts
- Popular Search
The following parts include "KCG047QV1AA-G02" in Silicon Labs KCG047QV1AA-G02.
- Part Number
- Manufacturer
- Package
- Description
- SP12Q01L6ALZZ KOE KOE 4.7" 320×240 FSTN-LCD Black/White mode Transmissive WLED Parallel Data 12pins
- KCG057QV1DB-G760 Kyocera Display Kyocera Display 5.7" 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 20pins
- KG057QV1CA-G00 Kyocera Display Kyocera Display 5.7" 320×240 FSTN-LCD Black/White (Negative) Transmissive CCFL Parallel Data 20pins
- SP14N02L6ALCZ KOE KOE 5.1" 240×128 FSTN-LCD Black/White (Negative) Transmissive WLED LC7981 CPU 20pins
- LMG7420PLFC-X KOE KOE 5.1" 240×128 FSTN-LCD Black/White (Negative) Transmissive CCFL T6963C CPU 20pins
- LMG5278XUFC-00T KOE KOE 9.4" 640×480 FSTN-LCD Black/White (Negative) Transmissive CCFL Parallel Data 15pins
- LM8V302 Sharp Sharp 7.7" 640×480 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 29pins
- SP12N002 KOE KOE 4.8" 256×64 FSTN-LCD Black/White mode Transmissive CCFL T6963C CPU 20pins
- SP14Q006 KOE KOE 5.7" 320×240 FSTN-LCD Black/White mode Transmissive WLED Parallel Data 14pins
- KCG057QV1DB-G50 Kyocera Display Kyocera Display 5.7" 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 20pins
