onsemi FDMC510P-T

Product attributes

Attribute value

Manufacturer:

onsemi

Series:

PowerTrench®

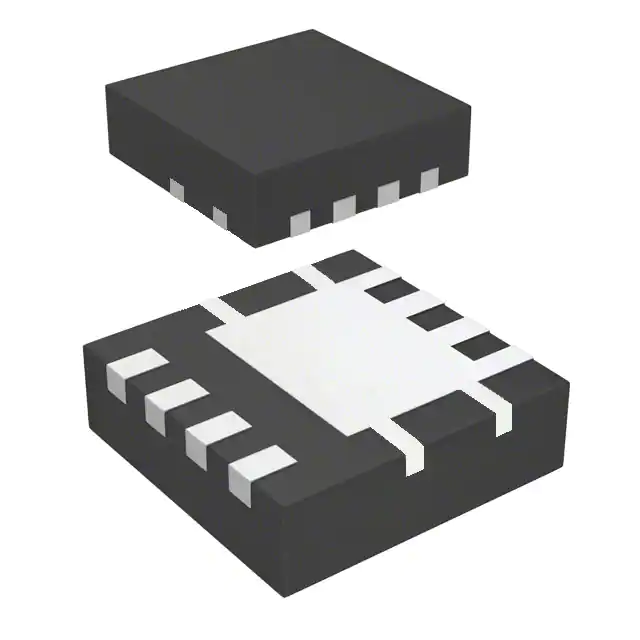

Package/Case:

8-PowerWDFN

Packaging:

Bulk

Product Status:

Discontinued at Digi-Key

FET Type:

P-Channel

Technology:

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):

20 V

Current - Continuous Drain (Id) @ 25°C:

12A (Ta), 18A (Tc)

Drive Voltage (Max Rds On, Min Rds On):

1.5V, 4.5V

Rds On (Max) @ Id, Vgs:

8mOhm @ 12A, 4.5V

Vgs(th) (Max) @ Id:

1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs:

116 nC @ 4.5 V

Vgs (Max):

±8V

Input Capacitance (Ciss) (Max) @ Vds:

7860 pF @ 10 V

FET Feature:

-

Power Dissipation (Max):

2.3W (Ta), 41W (Tc)

Operating Temperature:

-55°C ~ 150°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Surface Mount

Supplier Device Package:

8-WDFN (3.3x3.3)
