Carlo Gavazzi Inc. A82-10500
- Part No.:
- A82-10500
- Manufacturer:
- Carlo Gavazzi Inc.
- Category:
- Current Sense Transformers
- Package:
- Datasheet:
-
A82-10500.pdf
- Description:
- CURR SENSE XFMR 500A CHAS MNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
A82-10500 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Carlo Gavazzi Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Frequency Range:
- 40Hz ~ 1kHz
- Type:
- Non-Invasive (Solid Core)
- Current Rating (Amps):
- 500 A
- Inductance:
- -
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- -
- Current Ratio:
- -
- DC Resistance (DCR):
- -
- Ratings:
- -
- Mounting Type:
- Chassis Mount
- Size / Dimension:
- 3.740" L x 0.787" W (95.00mm x 20.00mm)
- Height - Seated (Max):
- 2.657" (67.50mm)
- Termination Style:
- Wire Leads

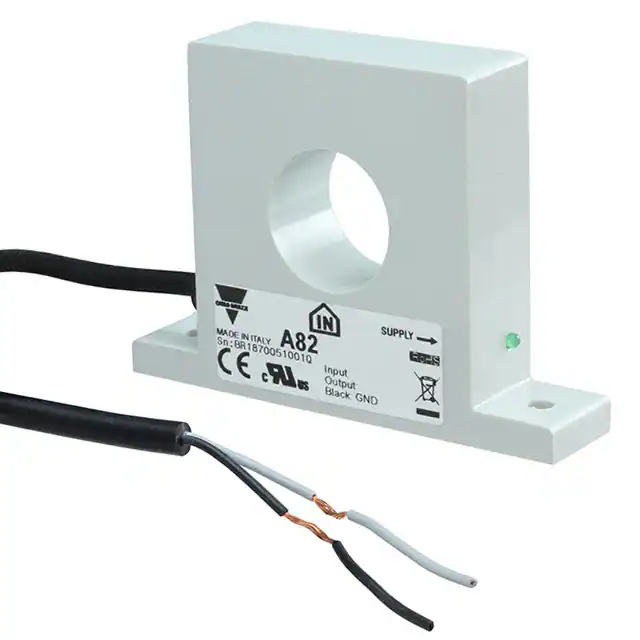

| Image |  |
|
|
 |
|
| Part Number | A82-30250 | A82-2025 | A82-20100 | A82-20500 | A82-20250 |
| Manufacturer | Carlo Gavazzi Inc. | Carlo Gavazzi Inc. | Carlo Gavazzi Inc. | Carlo Gavazzi Inc. | Carlo Gavazzi Inc. |
| Series | * | - | - | - | - |
| Packaging | Bulk | Box | Box | Bag | Bag |
| Product Status | Active | Active | Active | Active | Active |
| Frequency Range | - | 40Hz ~ 1kHz | 40Hz ~ 1kHz | 40Hz ~ 1kHz | 40Hz ~ 1kHz |
| Type | - | Non-Invasive (Solid Core) | Non-Invasive (Solid Core) | Non-Invasive (Solid Core) | Non-Invasive (Solid Core) |
| Current Rating (Amps) | - | 25 A | 100 A | 500 A | 250 A |
| Inductance | - | - | - | - | - |
| ET (Volt-Time) | - | - | - | - | - |
| Turns Ratio - Primary:Secondary | - | - | - | - | - |
| Current Ratio | - | - | - | - | - |
| DC Resistance (DCR) | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Mounting Type | - | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Size / Dimension | - | 3.740" L x 0.787" W (95.00mm x 20.00mm) | 3.740" L x 0.787" W (95.00mm x 20.00mm) | 3.740" L x 0.787" W (95.00mm x 20.00mm) | 3.740" L x 0.787" W (95.00mm x 20.00mm) |
| Height - Seated (Max) | - | 2.657" (67.50mm) | 2.657" (67.50mm) | 2.657" (67.50mm) | 2.657" (67.50mm) |
| Termination Style | - | Wire Leads | Wire Leads | Wire Leads | Wire Leads |
