Triad Magnetics VPT48-5200
- Part No.:
- VPT48-5200
- Manufacturer:
- Triad Magnetics
- Category:
- Power Transformers
- Package:
- Datasheet:
-
VPT48-5200.pdf
- Description:
- PWR XFMR TOROIDAL 250VA CHAS MT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
VPT48-5200 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Triad Magnetics
- Series:
- Chassis Mount: World Series™
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Toroidal
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- Parallel 24V, Series 48V
- Current - Output (Max):
- Parallel 10.4A, Series 5.2A
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 250VA
- Mounting Type:
- Chassis Mount
- Termination Style:
- Wire Leads
- Size / Dimension:
- 112.00mm Dia x 54.00mm W
- Height - Seated (Max):
- 58.0mm
- Voltage - Isolation:
- 4000Vrms
- Weight:
- 4.9 lbs (2.2 kg)
| Image |  |
 |
 |
 |
 |

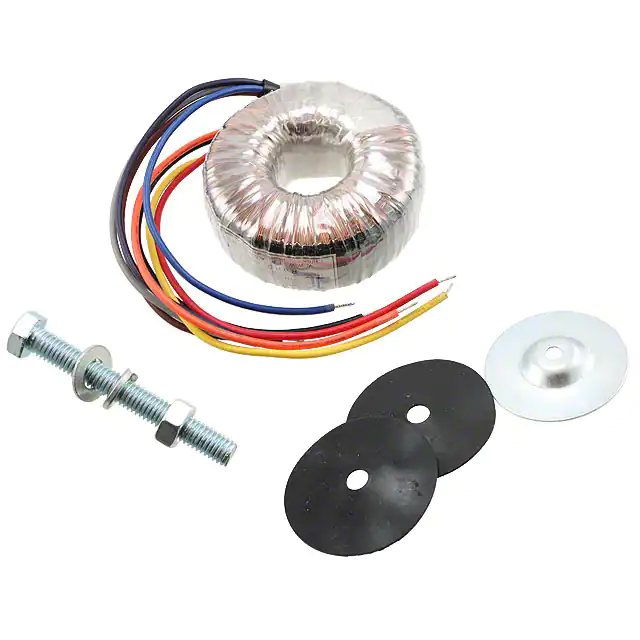

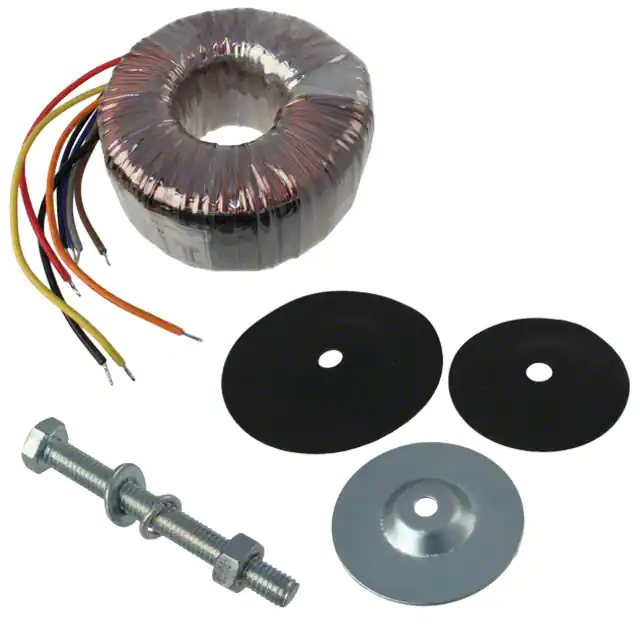

| Part Number | VPT48-5200 | VPT48-10400 | VPT48-3300 | VPT48-2080 | VPT48-520 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Series | Chassis Mount: World Series™ | Chassis Mount: World Series™ | Chassis Mount: World Series™ | Chassis Mount: World Series™ | Chassis Mount: World Series™ |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 24V, Series 48V | Parallel 24V, Series 48V | Parallel 24V, Series 48V | Parallel 24V, Series 48V | Parallel 24V, Series 48V |
| Current - Output (Max) | Parallel 10.4A, Series 5.2A | Parallel 20.8A, Series 10.4A | Parallel 6.66A, Series 3.33A | Parallel 4.16A, Series 2.08A | Parallel 1.04A, Series 520mA |
| Primary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No | No |
| Power - Max | 250VA | 500VA | 160VA | 100VA | 25VA |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | Wire Leads | Wire Leads | Wire Leads | Wire Leads | Wire Leads |
| Size / Dimension | 112.00mm Dia x 54.00mm W | 140.00mm Dia x 60.00mm W | 103.00mm Dia x 48.00mm W | 87.00mm Dia x 47.00mm W | 71.00mm Dia x 32.00mm W |
| Height - Seated (Max) | 58.0mm | 66.0mm | 52.0mm | 51.0mm | 34.0mm |
| Voltage - Isolation | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms |
| Weight | 4.9 lbs (2.2 kg) | 9.3 lbs (4.2 kg) | 3.6 lbs (1.6 kg) | 2.2 lbs (997.9 g) | 0.882 lb (400.07 g) |
