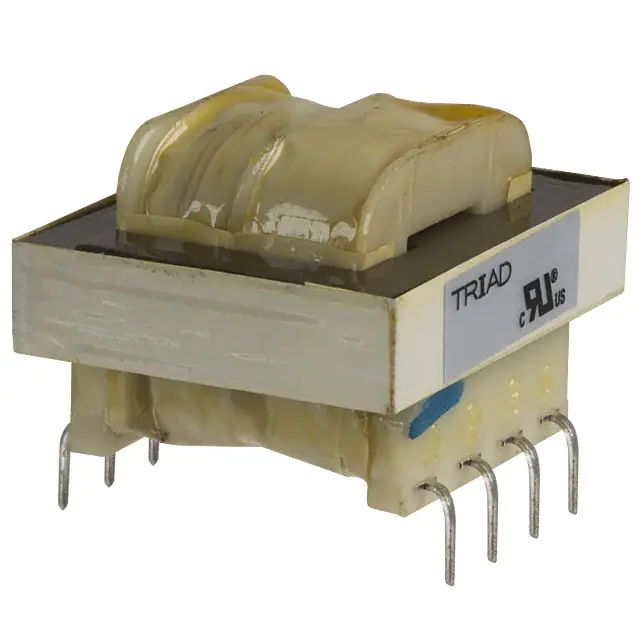

Triad Magnetics FS12-200-C2
- Part No.:
- FS12-200-C2
- Manufacturer:
- Triad Magnetics
- Category:
- Power Transformers
- Package:
- Datasheet:
-
FS12-200-C2.pdf
- Description:
- PWR XFMR LAMINATED 2.4VA TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FS12-200-C2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Triad Magnetics
- Series:
- Split Pack™, Class 2/3, FS
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- Parallel 6.3V, Series 12.6V
- Current - Output (Max):
- Parallel 400mA, Series 200mA
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 2.4VA
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Size / Dimension:
- 34.93mm L x 28.58mm W
- Height - Seated (Max):
- 30.15mm
- Voltage - Isolation:
- 4200Vrms
- Weight:
- 0.25 lb (113.4 g)
| Image |  |
|
 |
 |
 |
| Part Number | FS12-090-C2 | FS12-200-C2 | FS12-500-C2 | FS12-090 | FS12-200 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Series | Split Pack™, Class 2/3, FS | Split Pack™, Class 2/3, FS | Split Pack™, Class 2/3, FS | Split Pack™ | Split Pack™ |
| Packaging | Tube | Tube | Tube | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 6.3V, Series 12.6V | Parallel 6.3V, Series 12.6V | Parallel 6.3V, Series 12.6V | Parallel 6.3V, Series 12.6V | Parallel 6.3V, Series 12.6V |
| Current - Output (Max) | Parallel 180mA, Series 90mA | Parallel 400mA, Series 200mA | Parallel 1A, Series 500mA | Parallel 180mA, Series 90mA | Parallel 400mA, Series 200mA |
| Primary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No | No |
| Power - Max | 1.1VA | 2.4VA | 6VA | 1.1VA | 2.4VA |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Size / Dimension | 34.93mm L x 28.58mm W | 34.93mm L x 28.58mm W | 41.28mm L x 33.32mm W | 34.93mm L x 28.56mm W | 34.93mm L x 28.58mm W |
| Height - Seated (Max) | 23.80mm | 30.15mm | 33.32mm | 23.80mm | 30.15mm |
| Voltage - Isolation | 4200Vrms | 4200Vrms | 4200Vrms | 2500Vrms | 2500Vrms |
| Weight | 0.17 lb (77.11 g) | 0.25 lb (113.4 g) | 0.44 lb (199.58 g) | 0.17 lb (77.11 g) | 0.25 lb (113.4 g) |
