Signal Transformer ST-3-24
- Part No.:
- ST-3-24
- Manufacturer:
- Signal Transformer
- Category:
- Power Transformers
- Package:
- Datasheet:
-
ST-3-24.pdf
- Description:
- PWR XFMR LAMINATED 2.4VA TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ST-3-24 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Signal Transformer
- Series:
- ST
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 115V
- Voltage - Secondary (Full Load):
- Parallel 12V, Series 24V
- Current - Output (Max):
- Parallel 200mA, Series 100mA
- Primary Winding(s):
- Single
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 2.4VA
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Size / Dimension:
- 34.90mm L x 28.60mm W
- Height - Seated (Max):
- 30.80mm
- Voltage - Isolation:
- 2500Vrms
- Weight:
- 0.25 lb (113.4 g)
| Image |  |
 |
|
 |
|

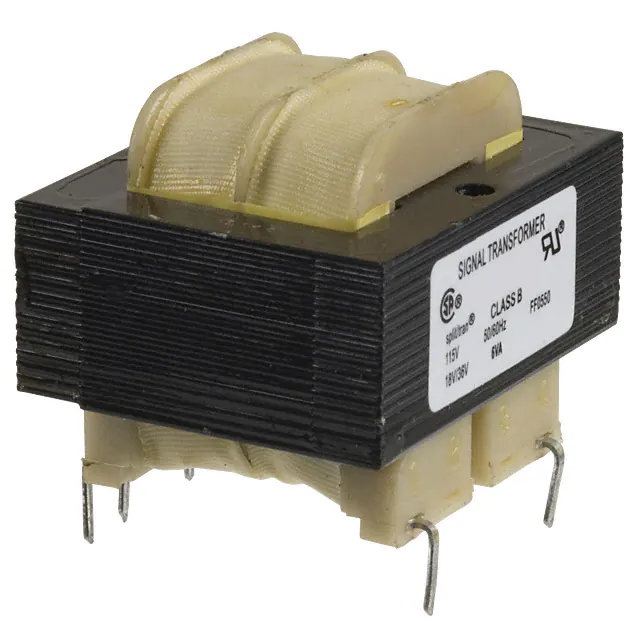

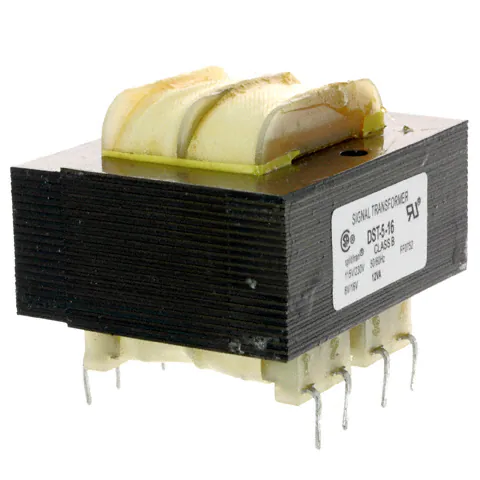

| Part Number | ST-3-24 | ST-4-24 | ST-4-28 | ST-5-16 | ST-3-28 |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Series | ST | ST | ST | ST | ST |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 115V | 115V | 115V | 115V | 115V |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V | Parallel 12V, Series 24V | Parallel 14V, Series 28V | Parallel 8V, Series 16V | Parallel 14V, Series 28V |
| Current - Output (Max) | Parallel 200mA, Series 100mA | Parallel 500mA, Series 250mA | Parallel 400mA, Series 200mA | Parallel 1.6A, Series 800mA | Parallel 170mA, Series 85mA |
| Primary Winding(s) | Single | Single | Single | Single | Single |
| Secondary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No | No |
| Power - Max | 2.4VA | 6VA | 6VA | 12VA | 2.4VA |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Size / Dimension | 34.90mm L x 28.60mm W | 41.30mm L x 33.30mm W | 41.30mm L x 33.30mm W | 47.80mm L x 39.60mm W | 34.90mm L x 28.60mm W |
| Height - Seated (Max) | 30.80mm | 33.30mm | 33.30mm | 36.90mm | 30.80mm |
| Voltage - Isolation | 2500Vrms | 2500Vrms | 2500Vrms | 2500Vrms | 2500Vrms |
| Weight | 0.25 lb (113.4 g) | 0.44 lb (199.58 g) | 0.44 lb (199.58 g) | 0.7 lb (317.51 g) | 0.25 lb (113.4 g) |
